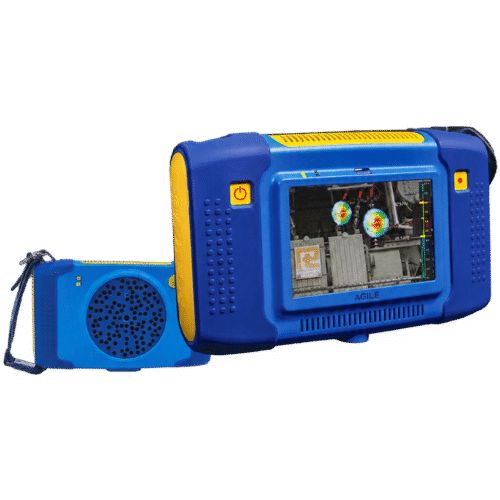

SonaVu+
Discover the SonaVu+ Industrial Acoustic & Ultrasonic Imaging Camera – a professional inspection solution designed for predictive maintenance, air & gas leak detection, electrical partial discharge monitoring, mechanical defect analysis, and industrial condition monitoring.
Equipped with 112 next-gen digital MEMS sensors, an extended frequency range of 2 kHz to 100 kHz, a 5-inch touchscreen display, and a long-distance optical camera, the SonaVu+ delivers detailed and reliable acoustic visualization for industrial professionals.
Whether inspecting high-voltage electrical assets, compressed air networks, steam systems, or rotating mechanical machinery, SonaVu+ helps maintenance teams identify hidden defects, quantify leak costs, and document inspection results for informed maintenance decisions.
Request Info
-
✔ 112 Next-Gen Digital MEMS Sensors
-
✔ Extended Frequency Range: 2 kHz to 100 kHz
-
✔ Detection Distance: Up to 200 Meters
-
✔ 5-inch Touchscreen Display (800 × 480 Resolution)
-
✔ Long-Distance Optical Camera with Two-Finger 3× Digital Zoom
-
✔ Compressed Air, Gas, & Vacuum Leak Detection
-
✔ Minimum Leak Detection: 38 cc/min at 1m (0.02 bar)
-
✔ On-Board PRPD Analysis for Electrical Fault Classification
-
✔ Heterodyned Audio Output with Bluetooth 5.0 Headphone Support
-
✔ Real-Time Spectrum & Acoustic Multi-Point Defect Detection
-
✔ GIS & GPS Integration for Location-Tagged Asset Audits
-
✔ 5 Hours Battery Life with External Battery Pack Support
-
✔ Cloud-Based InSights™ Analysis & Management Platform
-
✔ Internal Memory: 21 GB (Holds ~8,400 JPGs / 20 Hours Video)
-
✔ IP40 Rugged Industrial Enclosure with Built-In Cooling Plate
-
✔ Lightweight & Ergonomic Handheld Design (1.1 kg)
Application
• Compressed Air Leak Detection
-
Gas & Vacuum Leak Localization
-
High-Voltage Electrical Panel Inspection
-
Substation & Transformer Partial Discharge (PD) Detection
-
Arcing, Tracking & Corona Inspection
-
Mechanical Bearing Friction & Impact Monitoring
-
Pulley, Belt, Chain & Drive Inspection
-
Steam Trap & Valve Leak Audits
-
• Fugitive Emission Monitoring
-
• Industrial Energy Audits & Cost Savings
-
• Predictive Maintenance & Condition Monitoring
Overview
| Parameter | Specification |
| Model |
SonaVu+ |
| Camera Type |
Ultrasound / Acoustic Imaging Camera |
| Sensors |
112 Digital MEMS Sensors |
| Effective Frequency Range |
2 kHz to 100 kHz |
| Max Sampling Rate |
200 kS/s |
| Detection Distance |
0 m to 220 m |
| Detection Modes |
Audible, Ultrasonic, Custom |
| Minimum Leak Detection |
38 cc/min (0.00116 CFM) @ 1m, 0.02 bar |
Display & Optical
| Parameter | Specification |
| Screen Size |
5-inch Display |
| Display Resolution |
800 × 480 px |
| Image Resolution |
1024 × 600 px |
| Digital Zoom |
Two-Finger 3× Digital Zoom |
| Audio Output |
Wired or Bluetooth 5.0 |
Storage & Data Transfer
| Parameter | Specification |
| Memory Capacity |
21 GB (~8,400 JPGs / 20 Hours Video) |
| File Formats |
JPG, MP4, WAV |
| Data Transfer |
USB-C, Bluetooth 5.0 Support |
| Software Platform |
Cloud-Based InSights™ Reporting & Management Application |
Acoustic Performance
| Frequency | Detection Threshold |
| 2 kHz |
2.34 dB SPL |
| 20 kHz |
2.22 dB SPL |
| 40 kHz |
1.90 dB SPL |
| 55 kHz |
1.22 dB SPL |
| 77 kHz |
1.84 dB SPL |
| 100 kHz |
20.10 dB SPL |
Power & Environmental
| Parameter | Specification |
| Battery Type |
Rechargeable Li-ion (48.24 Wh) |
| Battery Life |
5 Hours (Includes External Battery Option) |
| IP Rating |
IP40 Rated |
| Operating Temperature |
-20°C to +50°C |
| Dimensions |
23.7 cm × 14.6 cm × 5.6 cm |
| Weight |
1.1 kg (2.43 lb) Including Battery |
Discover the SonaVu+ Acoustic Imaging Camera – Built for Industrial Audits
Are you searching for an acoustic imaging camera that converts invisible ultrasonic sound waves into clear visual color maps? The SonaVu+ Acoustic Imaging Camera is designed for predictive maintenance professionals, electrical inspectors, energy auditors, and safety managers who require fast, safe, and accurate leak and defect detection.
Featuring 112 digital MEMS sensors, an extended frequency range up to 100 kHz, a long-distance optical camera, and cloud-based AI analysis via InSights™, the SonaVu+ helps plants prevent catastrophic downtime and eliminate costly gas and compressed air waste.
Key Features of the SonaVu+ Acoustic Imaging Camera
High-Density MEMS Sensor Array
The 112 digital MEMS sensors provide incredible detection sensitivity and distance capabilities up to 220 meters. This allows inspectors to pinpoint leaks and electrical anomalies safely without needing scaffolding or shutting down critical systems.
Comprehensive Air, Gas & Vacuum Leak Detection
SonaVu+ brings compressed air, nitrogen, vacuum, and specialty gas leaks into sharp focus. Detecting leaks down to 38 cc/min, it helps industrial plants eliminate waste and lower energy bills immediately.

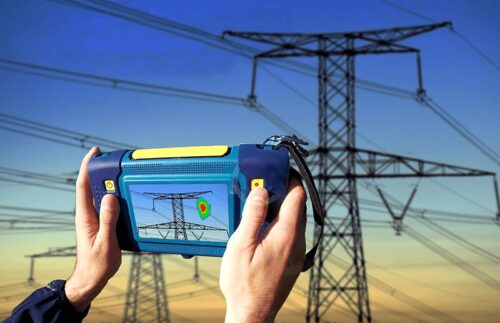

High-Voltage Partial Discharge (PD) Diagnosis
Equipped with On-Board PRPD (Phase-Resolved Partial Discharge) Analysis, SonaVu+ helps diagnose critical electrical faults—including arcing, tracking, corona, and surface discharge—on switchgears, insulators, and transformers before failures occur.
Mechanical Condition Monitoring
By combining real-time spectrum analysis with heterodyned audio listening via Bluetooth headphones, inspectors can detect friction, impact, and early mechanical degradation in open-faced bearings, chains, and drives.
Cloud-Based AI Reporting & Asset Management
The InSights™ reporting software makes storing, organizing, analyzing, and generating audit-ready PDF reports straightforward and efficient. Cloud-based AI capabilities simplify data management across large industrial facilities.
Cost-Effective Ultrasonic Inspection Solution for Industrial Reliability
The SonaVu+ combines visual imaging, ultrasonic sound mapping, audio heterodyning, and cloud reporting into one rugged, portable device. Incorporating ultrasonic imaging into your preventive and predictive maintenance programs enables your team to identify issues 10 times faster than traditional single-point ultrasound tools.
Why Professionals Choose SonaVu+
-
112 Next-Gen MEMS Sensor Array
-
Wide 2–100 kHz frequency range
-
Detection distance up to 220 meters
-
On-board PRPD partial discharge analysis
-
Long-distance optical camera with 3× digital zoom
-
Bluetooth 5.0 wireless headphone integration
-
GIS / GPS location tagging for asset mapping
-
Cloud-based InSights™ analysis and report generation
-
Lightweight 1.1 kg design with 5-hour battery life
Choose Agile Microsys Pvt. Ltd. for Advanced Ultrasonic Imaging Solutions
At Agile Microsys Pvt. Ltd., we deliver complete predictive maintenance and condition monitoring solutions. Our expert team provides:
-
On-Site Product Demonstrations
-
Technical Consultation & Application Guidance
-
Inspection Solutions & Equipment Selection
-
Training & After-Sales Technical Support
Take Your Leak Detection & Electrical Audits to the Next Level
Contact Agile Microsys Pvt. Ltd. today for product demonstrations, pricing, and expert guidance on the SonaVu+ Ultrasonic Imaging Camera.
