HD THERMAL IMAGING CAMERA

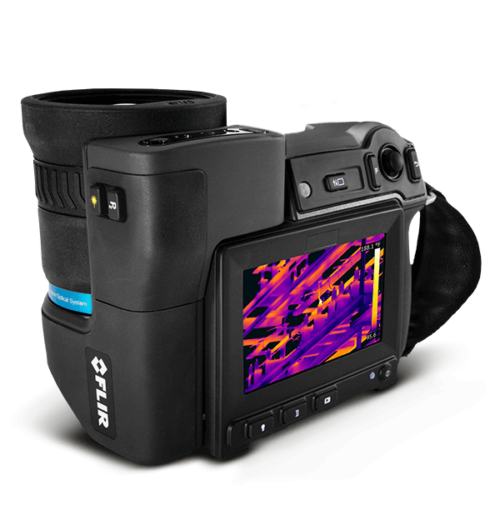

FLIR T1010

The FLIR T1010 is your entry to the world of outstanding thermal imaging performance. With up to 3.1 MP resolution (UltraMax®), superior thermal sensitivity, and FLIR’s most advanced user interface, the T1010 is designed to streamline your workday and make you the hero.

Request Info
HD RESOLUTION, WIDE TEMPERATURE RANGE

The T1010 records 1024 × 768 true HD resolution images, with thermal measurements up to 650°C (1202°F).

EXPERT FEATURES

With programmable buttons, an agile GUI, and live image enhancements such as 1-Touch Level/Span, the T1010 has the expert features you need.

COMPACT AND EASY TO USE

The T1010 has a robust yet compact frame with a 120° rotating optical block that puts any target within a comfortable viewing range.

OVERVIEW

Detector Type
Focal plane array (FPA), uncooled microbolometer
Difference Temperature
Delta temperature between the measurement functions and the reference temperature
Field of view (FOV)
28° × 21°
Focal Length 36 mm (1.42 in)
Housing material Magnesium
IR Resolution
1024 × 768; up to 3.1 MP with UltraMax
Laser
Activated by a dedicated button
Laser Alignment
The position is automatically displayed on the infrared image
Laser Classification
Class 2
Laser Type Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red)
Multi-Spectral Dynamic Imaging (MSX) Thermal image with enhanced detail presentation
Object Temperature Range
-40°C to 650°C (-40°F to 1202°F)
Profile
No
Thermal Sensitivity/NETD
<25 mK @ 30°C (86°F)
Weight
1.9 kg (4.3 lb)
Time Lapse
No
User Presets The user can select and combine measurements from one box and one delta
Screen EST Mode
Yes
Sampling Average in Screen EST Mode Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature
Accuracy [Drift] in Screen EST Mode Accuracy (drift): ±0.3°C (±0.5°F)

CONNECTIONS & COMMUNICATIONS

Antenna Internal (disabled)
Interface
USB Micro-B, HDMI
SD Card
One card slot for removable SD memory cards
Storage Media
Removable media SD or SDHC card. Class 10 or better recommended
USB USB Micro-B: data transfer to and from a PC, uncompressed colorized video
USB – Standard
USB 2.0 High-Speed USB Micro-B connector
Video Connector Type HDMI type C

ENVIRONMENTAL

EMC
ETSI EN 301 489-1 (radio) ETSI EN 301 489-17 EN 61000-6-2 (Immunity) EN 61000-6-3 (Emission) FCC 47 CFR Part 15 Class B (Emission) ICES-003
Emissivity Correction Variable from 0.01 to 1.0 or selected from the materials list
Encapsulation
IP 54 (IEC 60529)
Ergonomics The 120° rotating optical block allows you to point the camera in multiple directions while maintaining a comfortable position
Humidity (Operating and Storage) IEC 60068-2-30 / 24 hours, 95% relative humidity, 25–40°C (77–104°F) / 2 cycles
Operating Temperature Range -15°C to 50°C (5°F to 122°F)
Radio Spectrum ETSI EN 300 328 FCC Part 15.247 RSS-247 Issue 2
Safety
EN/UL/CSA/PSE 60950-1
Shock
25 g (IEC 60068-2-29)
Storage Temperature Range –40 to +70°C (–40 to 158°F)
Tripod Mounting UNC ¼”-20
Vibration 2 g (IEC 60068-2-6)

IMAGING & OPTICAL

Auto orientation Automatic landscape or portrait
Automatic Image Adjustment Standard or histogram based on the image content
Built-in Digital Camera 5 Mpixel with LED light
Camera size excl lens (L x W x H) 167.2 mm × 204.5 mm × 180.4 mm (6.6 in. × 8.0 in. × 7.1 in.)
Camera software update Use PC software FLIR Tools
Color palettes Iron, Rainbow, Rainbow HC, White-hot, Black hot, Arctic, Lava
Detector Pitch 17 µm
Digital Camera
Field of view adapts to the infrared lens
Digital image enhancement Adaptive digital noise reduction
Digital Zoom
1–8× continuous
Display Type
Capacitive touchscreen
f-number
1.15
Focus
One-shot or manual
Gallery Review thumbnail/full image on the camera Edit measurements/palettes/image modes on the camera
Image Frequency
30 Hz
Image Modes Thermal, thermal MSX, digital camera
Infrared Image Full-color infrared image
Lens Identification
Automatic
Manual Image Adjustment Linear based, possible to adjust level/span/max./min.
Minimum IR focus distance
1.3 m (4.26 ft)
Minimum IR–visual alignment distance
1.3 m (4.26 ft)
MSX Resolution
1024 × 768 pixels
Non-radiometric IR video recording
H.264 to the memory card
Non-radiometric IR video streaming
H.264 video using USB
Spatial resolution (IFOV) 0.47 mrad
Spectral Range
7.5–14 µm
Viewfinder No
Visual Video Recording H.264 to the memory card
4.3” Display
800 × 480 pixels
UltraMax
Yes
Video Lamp Built-in LED light
Visual Image
Full-color visual image
Visual Video Streaming H.264 video using USB

MEASUREMENT & ANALYSIS

Area 1 box with max./min./average
External Optics & Windows Correction Automatic, based on the inputs of the window transmission and temperature
Languages Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simplified Chinese, Swedish, Traditional Chinese, Turkish
Measurement Corrections
Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external infrared window compensation
Measurement Presets
No measurements, Center spot, Hot spot, Coldspot, User preset 1, User preset 2
Optics Transmission Correction
Automatic, based on signals from internal sensors
Reference Temperature
Yes
Reflected apparent temperature correction
Automatic, based on the input of the reflected temperature
Set-up Commands Save options, programmable button, reset options, set-up camera, language, time & units, camera information
Spot Meter
1
Object temperature range Accuracy
±2°C (±3.6°F) or ±2% of reading at 25°C for temperatures from -40°C up to 1200°C

METER DATA

Display Built-in touchscreen, 4.3 in. wide screen LCD, 800 × 480 pixels

POWER

Battery operating time >2.5 hours at 25°C (68°F) and typical use
Battery type
Rechargeable Li-ion battery
Charging system
In-camera (AC adapter or 12 V from a vehicle) or two-bay charger
Charging Temperature
0°C to 45°C (32°F to 113°F), except for the Korean market: 10°C to ‎45°C (‎50°F to ‎113°F)‎
Charging Time
2.5 hours to 90% capacity, charging status indicated by LEDs
External Power Operation AC adapter 90–260 V AC, 50/60 Hz or 12 V from a vehicle (cable with a standard plug, optional)
Power Management Automatic power-off functionality, user-configurable between 5 minutes, 20 minutes, and no automatic shutdown

SHIPPING INFORMATION

Box Contents
Infrared camera with lens Battery (2 each), Battery charger, HDMI-HDMI cable, Hard transport case Large eyecup, Lens cap, Neck strap, Power supply, including multi-plugs USB cable, Standard A to Micro-B Calibration certificate, FLIR Tools+ license card, User documentation on CD-ROM Printed documentation, Bluetooth headset, SD card

STORAGE MEDIA

File Formats
Standard JPEG, measurement data included No CSQ, measurement data included No CSQ storage on the camera
File Formats – Visual
Standard JPEG, automatically associated with the corresponding thermal image
Image Storage
Standard JPEG, including digital image and measurement data, on a memory card
Image Storage Mode Simultaneous storage of thermal and digital images in the same JPEG file Option to store a digital photo as a separate JPEG file
