Thermal Monitoring Solutions

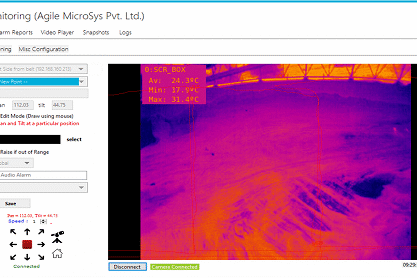

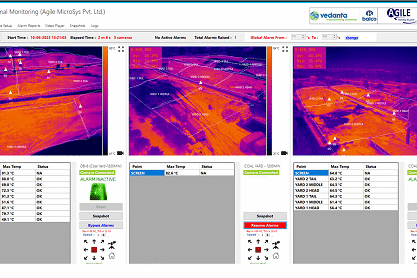

Coal Stockpile Temperature Monitoring

  • Detect hot spots early and Prevent Fires in Coal Pile
  • 24x7x365 days Monitoring of the Coal stockyard With FLIR Online thermal
  • Imagers mounted over Pan & Tilt
  • Remote monitoring – see high temperatures without onsite personnel
  • Connect multiple cameras to a central monitor via Ethernet
  • Locates combustion developing below the surface
  • Earliest possible warning with trend analysis software
  • Installations – NTPC Simadri/ J K Cement
Coal Fire Detection Solution

Coal Stockpile Temperature Monitoring

  • Detect hot spots early and Prevent Fires in Coal Pile
  • 24x7x365 days Monitoring of the Coal stockyard With FLIR Online thermal
  • Imagers mounted over Pan & Tilt
  • Remote monitoring – see high temperatures without onsite personnel
  • Connect multiple cameras to a central monitor via Ethernet
  • Locates combustion developing below the surface
  • Earliest possible warning with trend analysis software
  • Installations – NTPC Simadri/ J K Cement
Rotary-kiln-thermal-monitoring

Kiln Shell Temperature Monitoring

  • 24/7, real-time view of the kiln operation and performance
  • Kiln visualization 2D and 3D
  • Bricks and coating thickness calculation
  • One or Two FLIR Online Thermal Imagers to scan the complete length of the Kiln
  • Thermographic analysis module
  • History reference / Image Trend / Worst Case Image / Alarms

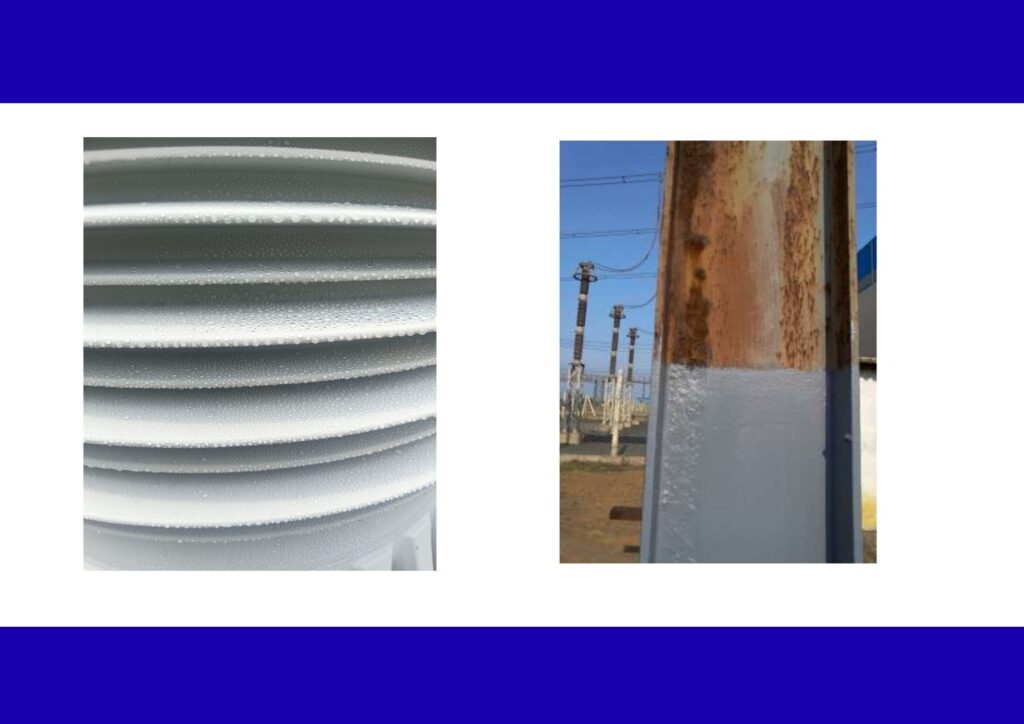

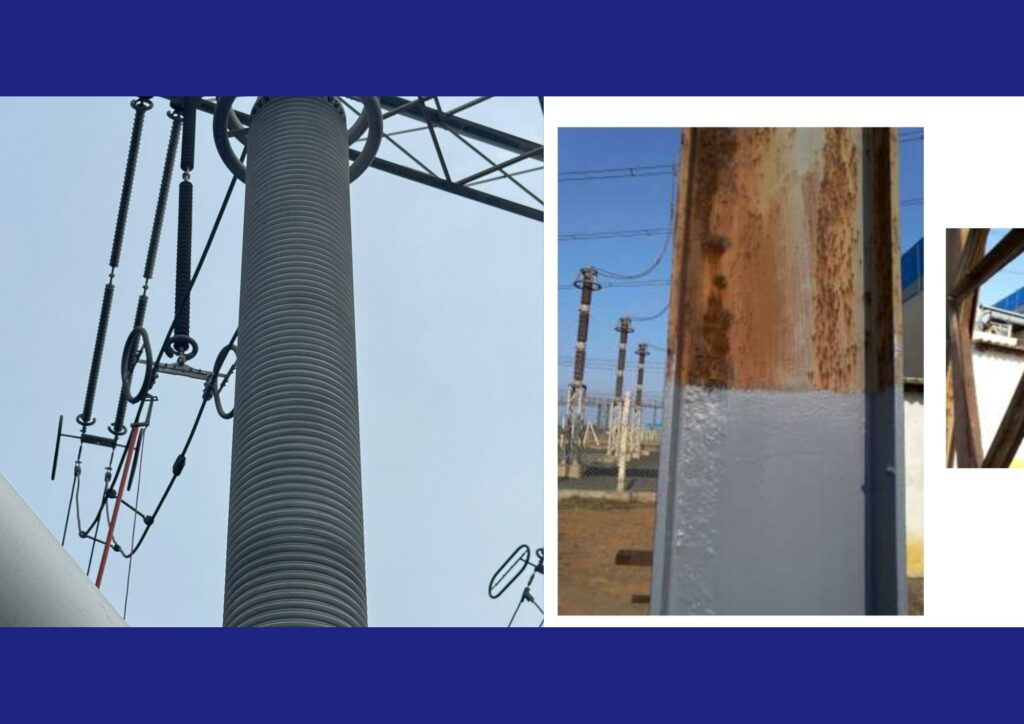

Anti Corrosion & RTV High Voltage Insulator Coatings

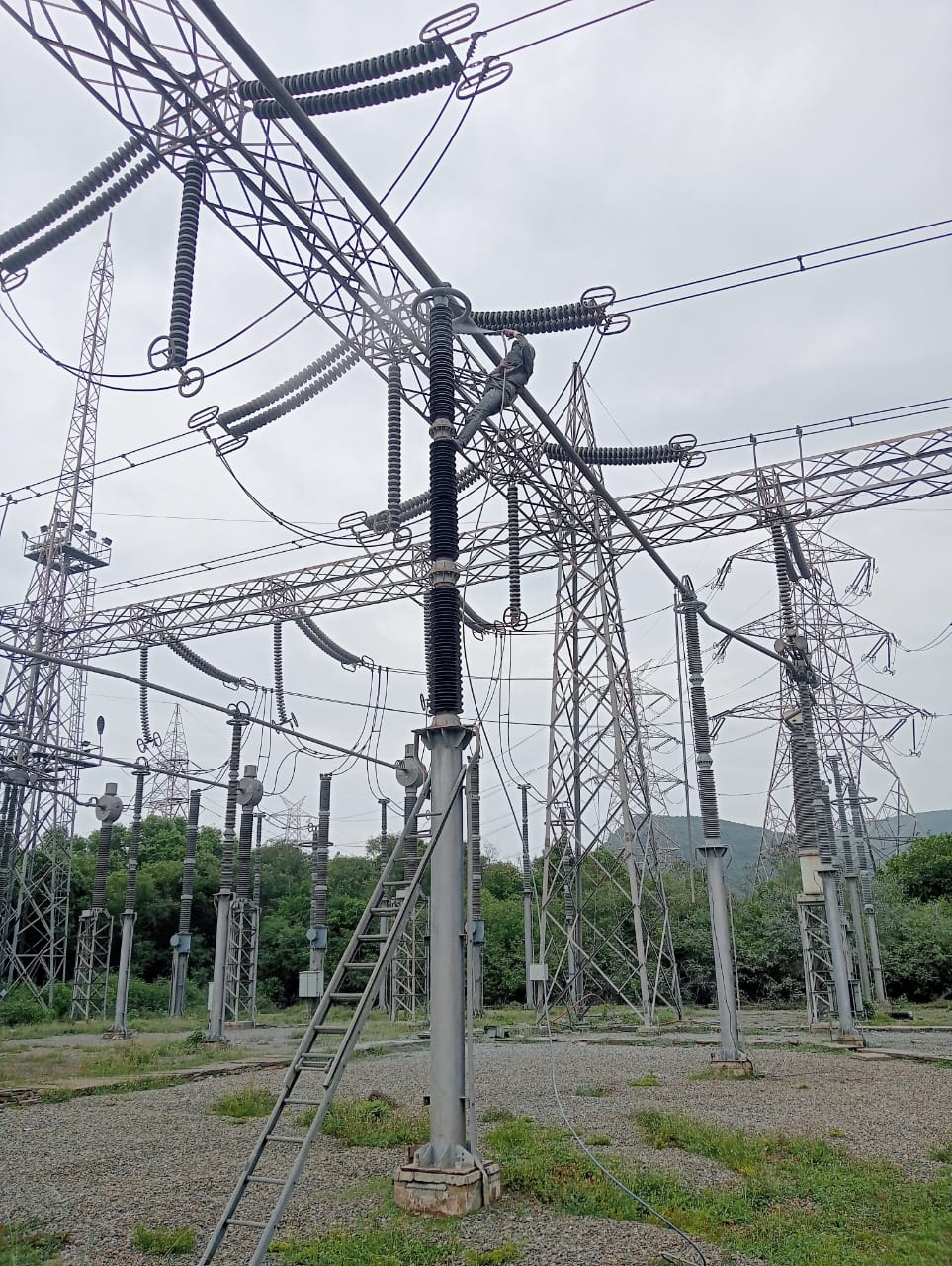

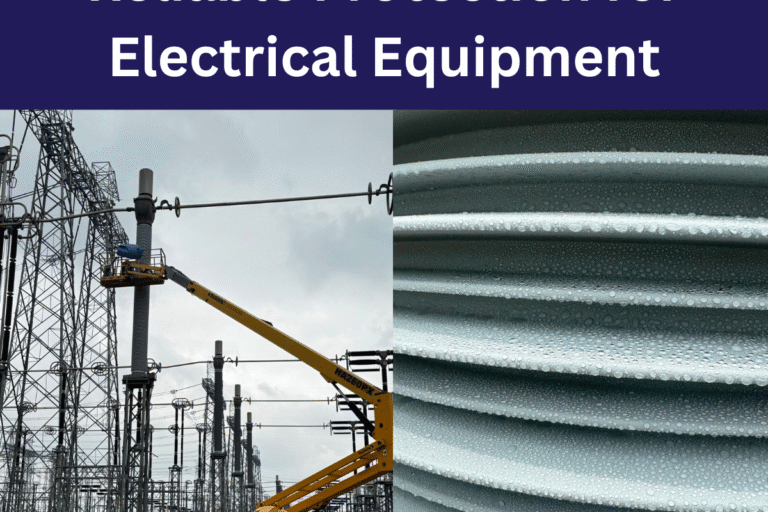

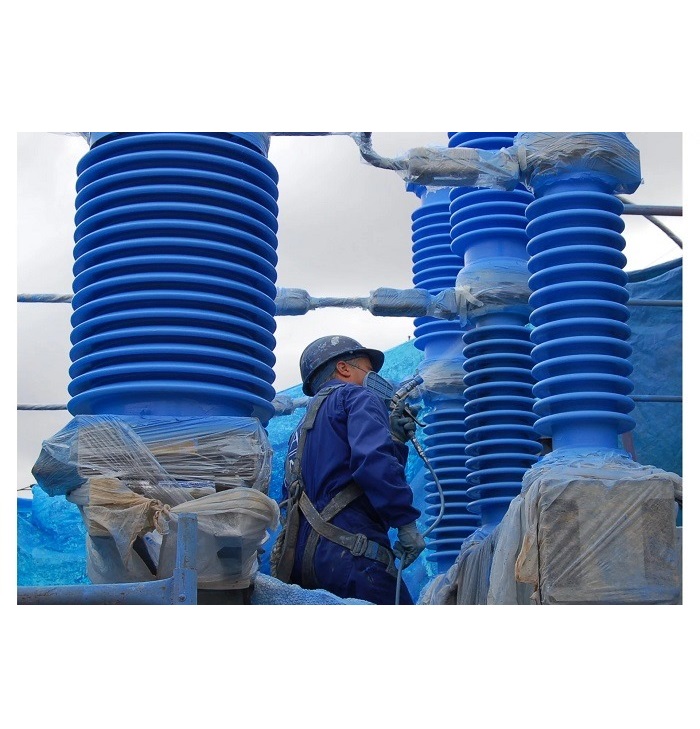

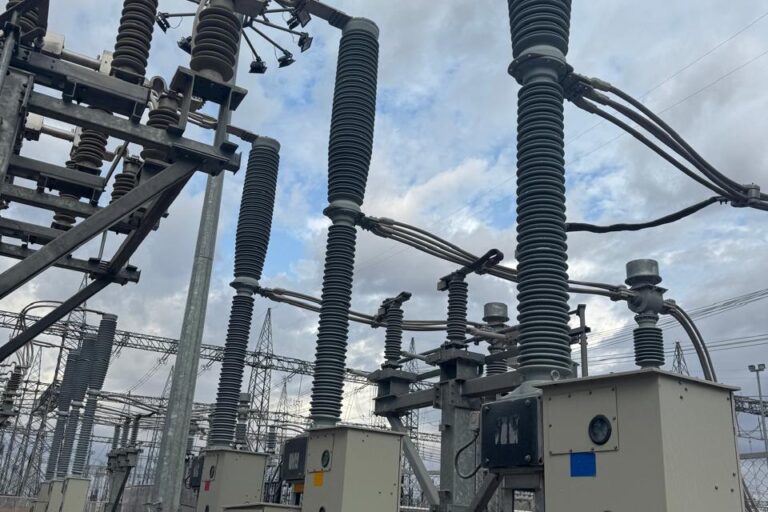

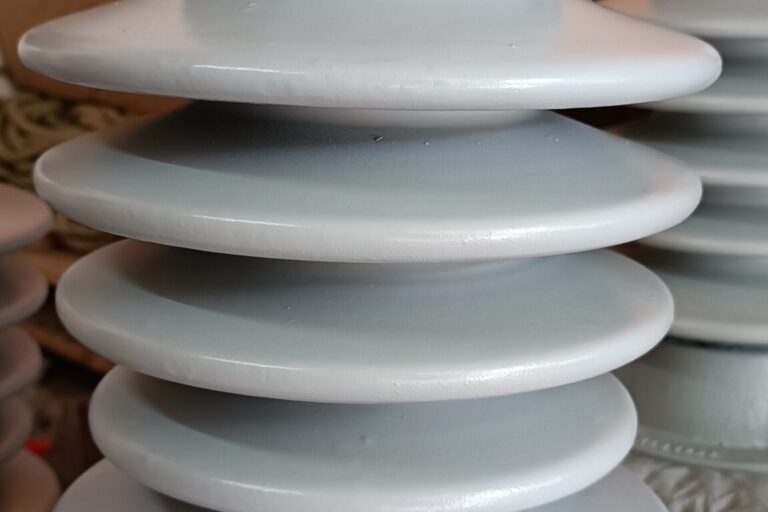

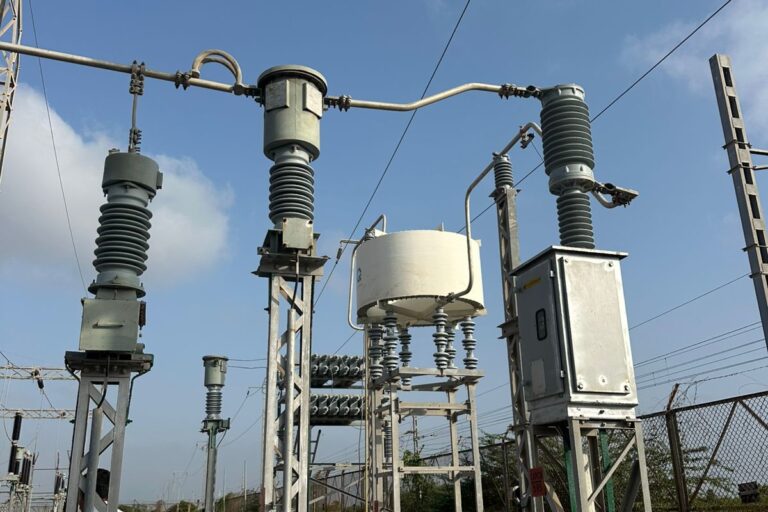

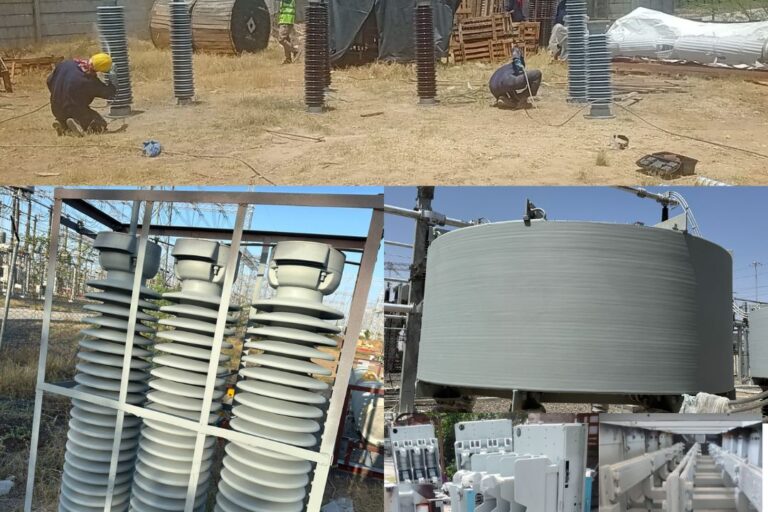

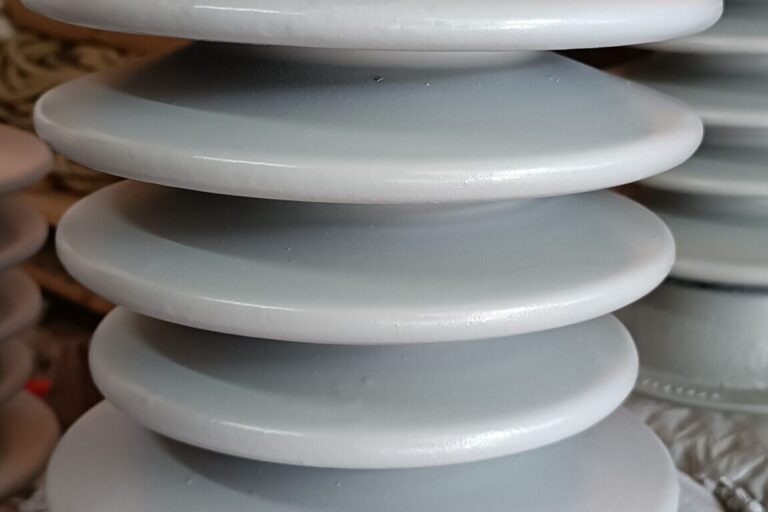

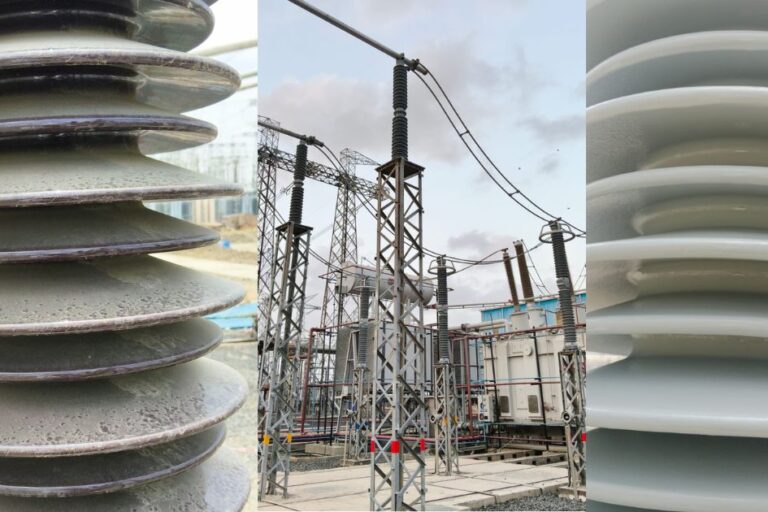

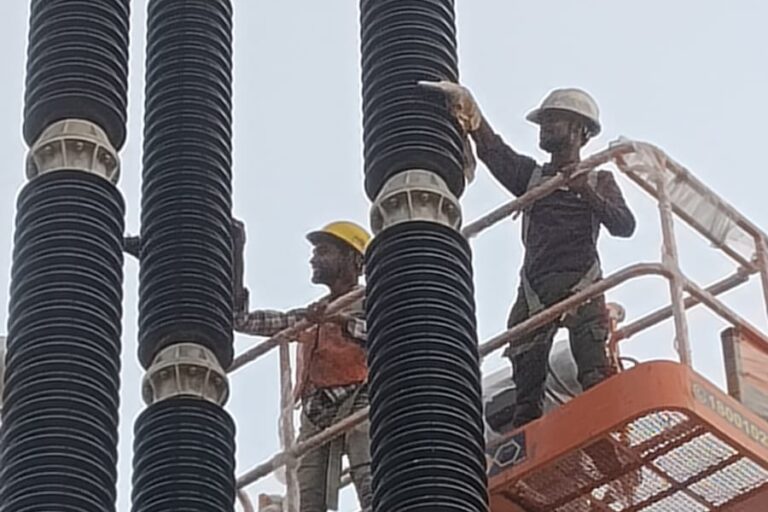

High Voltage Insulator Coating

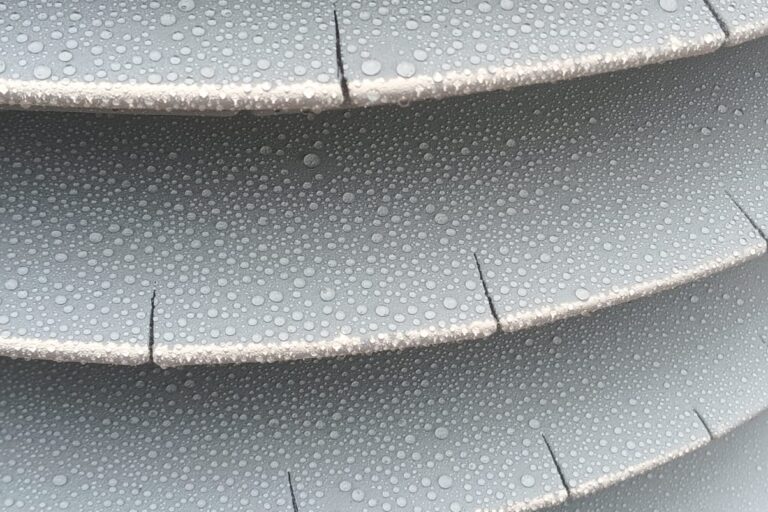

  • RTV Coating from CSL Silicone provides a highly hydrophobic surface for its entire life.
  • Excellent self-cleaning characteristics and long-term resistance to weathering and difficult environments
  • Suppression of leakage current, discharges, and pollution flashover
  • Reduced maintenance expenditure, as in washing, compared to conventional insulator surfaces.
  • Best of both worlds, the mechanical strength of porcelain and pollution performance of silicone rubber.
  • Nontoxic and environmentally friendly material
  • RTV Coating is not affected by UV light, corona discharge, chemical contaminants, salt, extreme temperatures, or corrosive environments
  • Installations: 800 KVDC PGCIL Kurukshetra, 800 KVDC PGCIL Champa, 765 KV PGCIL Bhuj 400 KV Lines (Mapusa to Kolhapur), 400 KV Lines (Sonipat Haryana)
high-voltage-insulator-coating

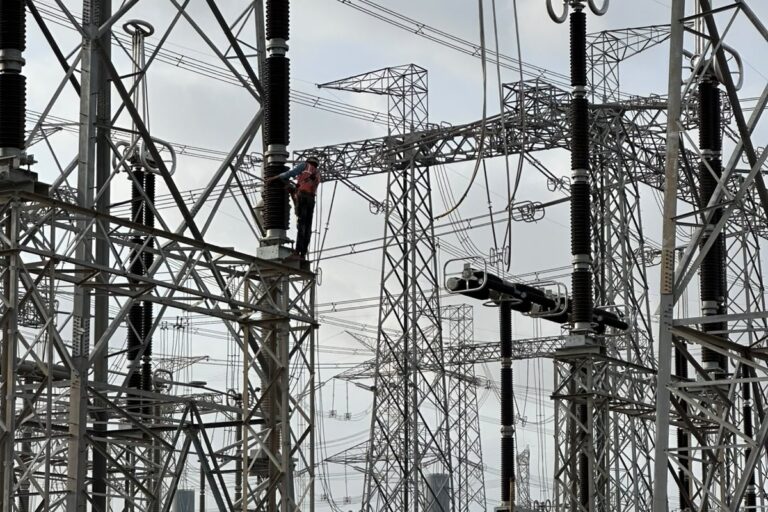

High Voltage Insulator Coating

  • RTV Coating from CSL Silicone provides a highly hydrophobic surface for its entire life.
  • Excellent self-cleaning characteristics and long-term resistance to weathering and difficult environments
  • Suppression of leakage current, discharges, and pollution flashover
  • Reduced maintenance expenditure, as in washing, compared to conventional insulator surfaces.
  • Best of both worlds, the mechanical strength of porcelain and pollution performance of silicone rubber.
  • Nontoxic and environmentally friendly material
  • RTV Coating is not affected by UV light, corona discharge, chemical contaminants, salt, extreme temperatures, or corrosive environments
  • Installations: 800 KVDC PGCIL Kurukshetra, 800 KVDC PGCIL Champa, 765 KV PGCIL Bhuj 400 KV Lines (Mapusa to Kolhapur), 400 KV Lines (Sonipat Haryana)
anti-corrosion-coating

Anti- Corrosion Coating

  • Minimal Surface preparation – No sandblasting or Ultra high-pressure blasting required.
  • Easy Application – Can be done using roller, brush, Spray gun, etc.
  • Long-lasting – service life of more than 10 years in extreme environments
  • Elasticity – 180% elasticity allows thermal expansion and contraction of a substrate and helps to eliminate rust creep
  • UV and Chemical resistant – Fully resistant to UV radiations and most chemicals
  • Superior Adhesion – Primary bond form with the substrate increases adhesion and hence increased life
  • Polysiloxane Technology – Ability to bridge hairline surface cracks
  • Warranty – 5 years
  • Installations: Adani/ PGCIL/ NPCIL/ Torrent/ L&T/ MSEDCL/ Sembcorp/ GETCO and many more……

Windows for Infrared Thermography

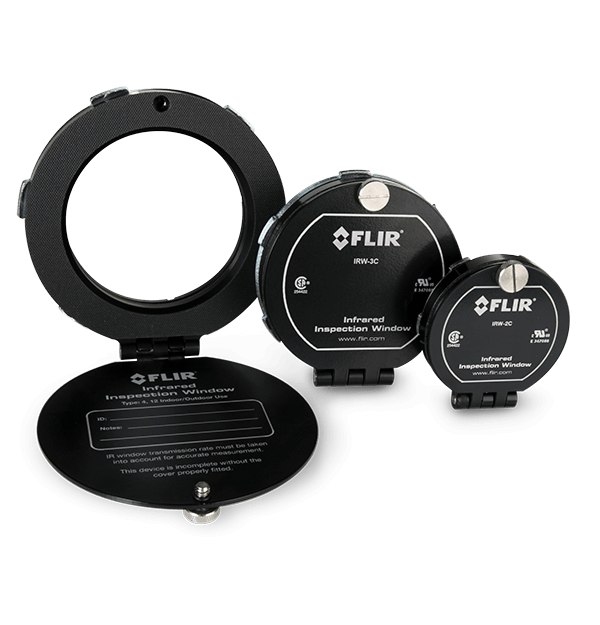

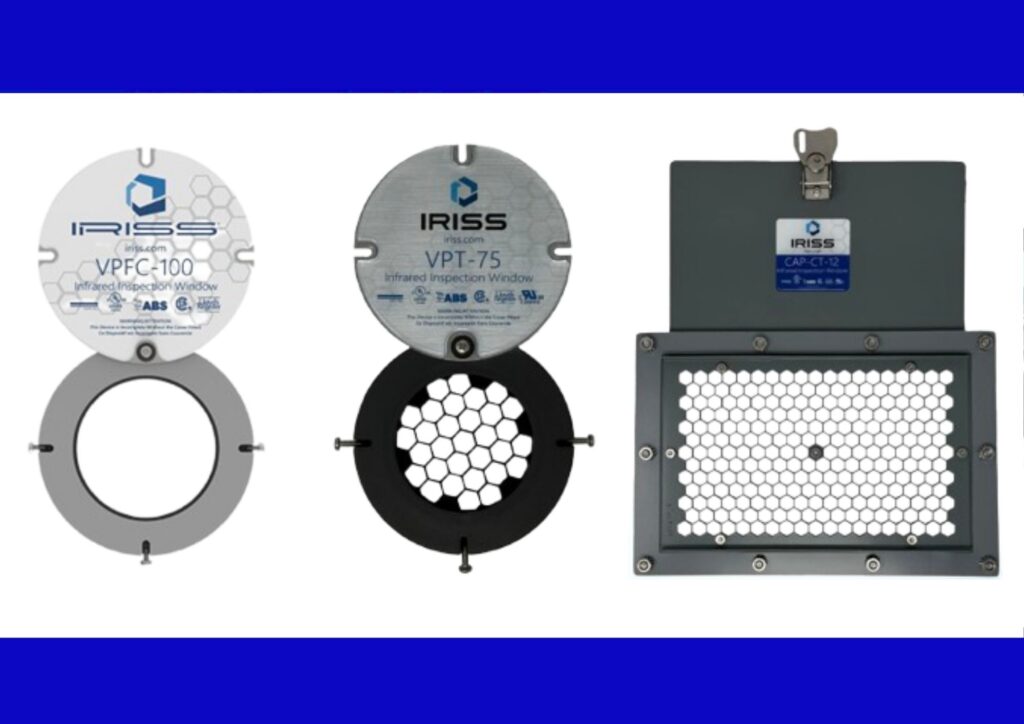

FLIR IR Windows

FLIR’s IR Windows add a barrier between customers and energized equipment, protecting users from arc flash accidents.

  • Enable Thermography of HT Panels without opening the panel
  • Transmits short, mid, and longwave IR images
  • Supports visual inspections and fusion features
  • Allows laser pointers and illumination to shine through
  • Perform inspections more efficiently and reduce the threat of arc flash injury, all while staying in compliance with NFPA 70E requirements.
  • Choice of an anodized aluminum frame, or durable stainless steel

FLIR IR Windows

FLIR’s IR Windows add a barrier between customers and energized equipment, protecting users from arc flash accidents.

  • Enable Thermography of HT Panels without opening the panel
  • Transmits short, mid, and longwave IR images
  • Supports visual inspections and fusion features
  • Allows laser pointers and illumination to shine through
  • Perform inspections more efficiently and reduce the threat of arc flash injury, all while staying in compliance with NFPA 70E requirements.
  • Choice of an anodized aluminum frame, or durable stainless steel

Product & Solutions

thermal-image-systems-and-optical

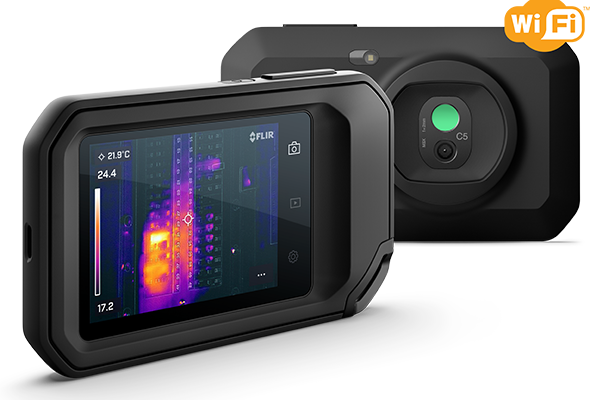

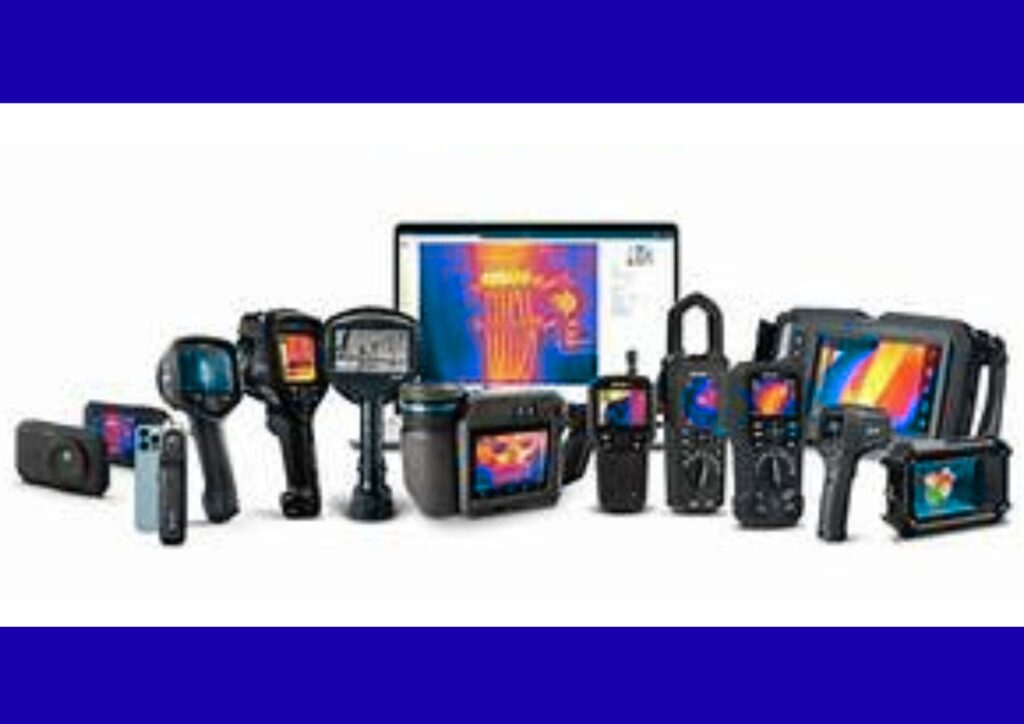

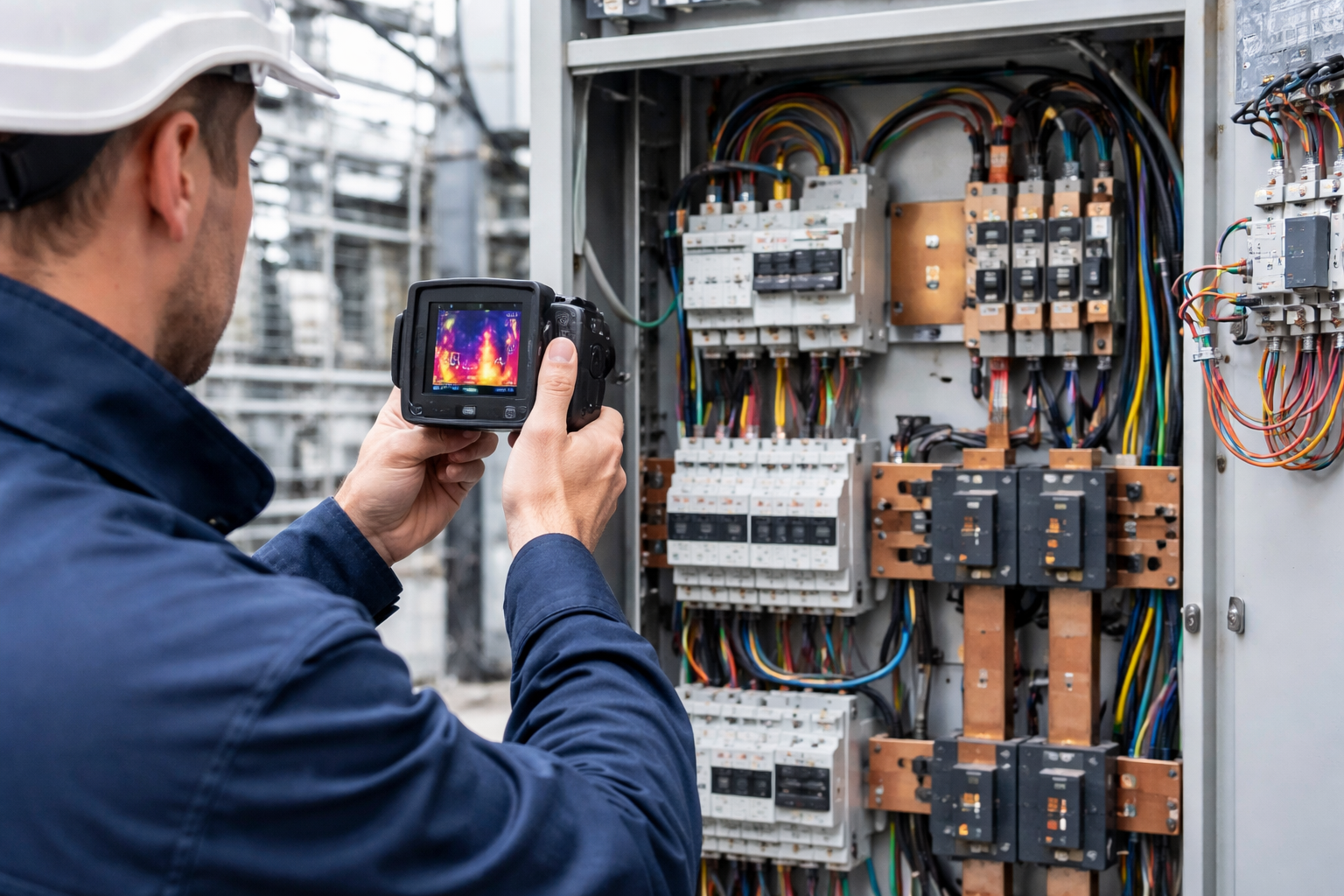

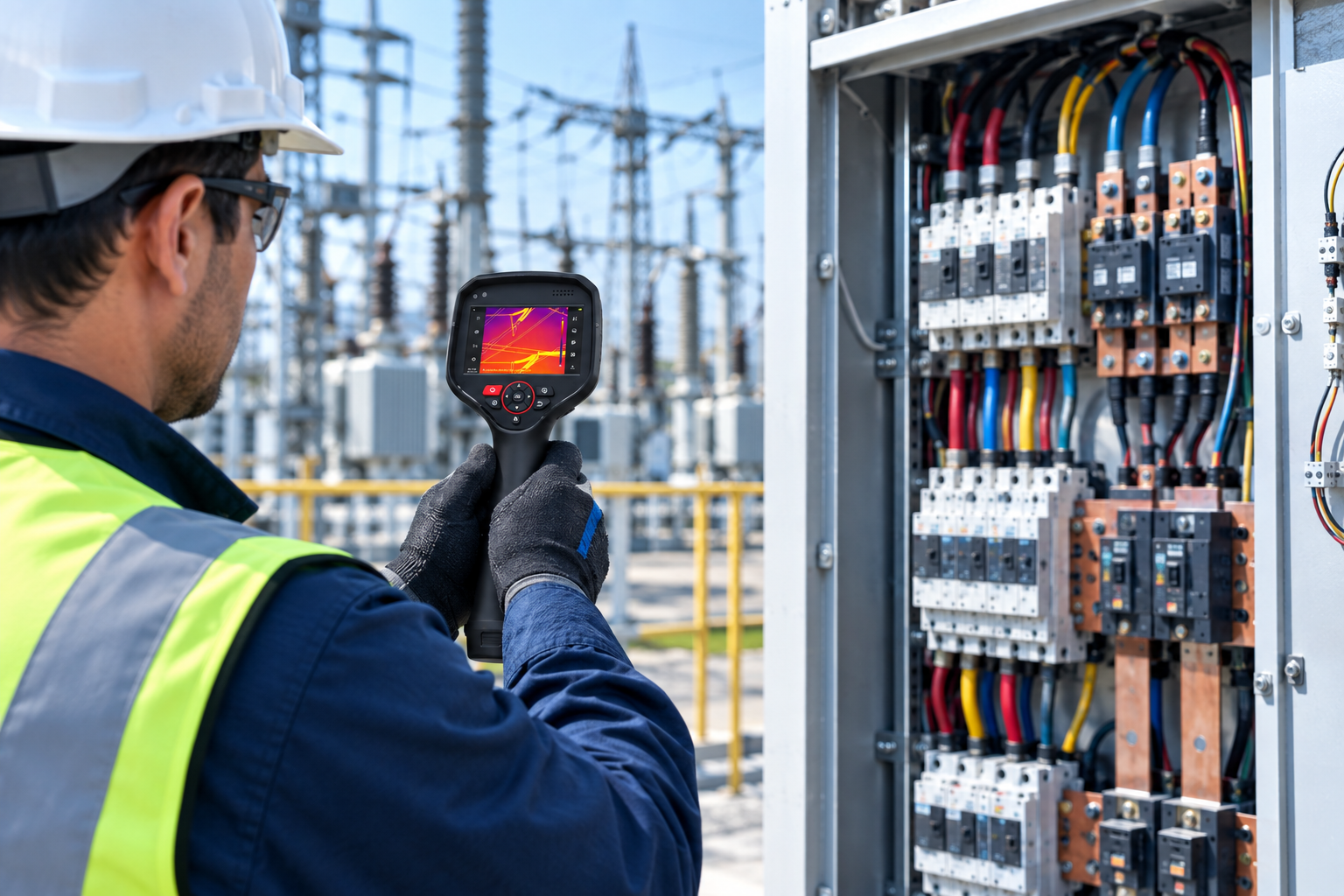

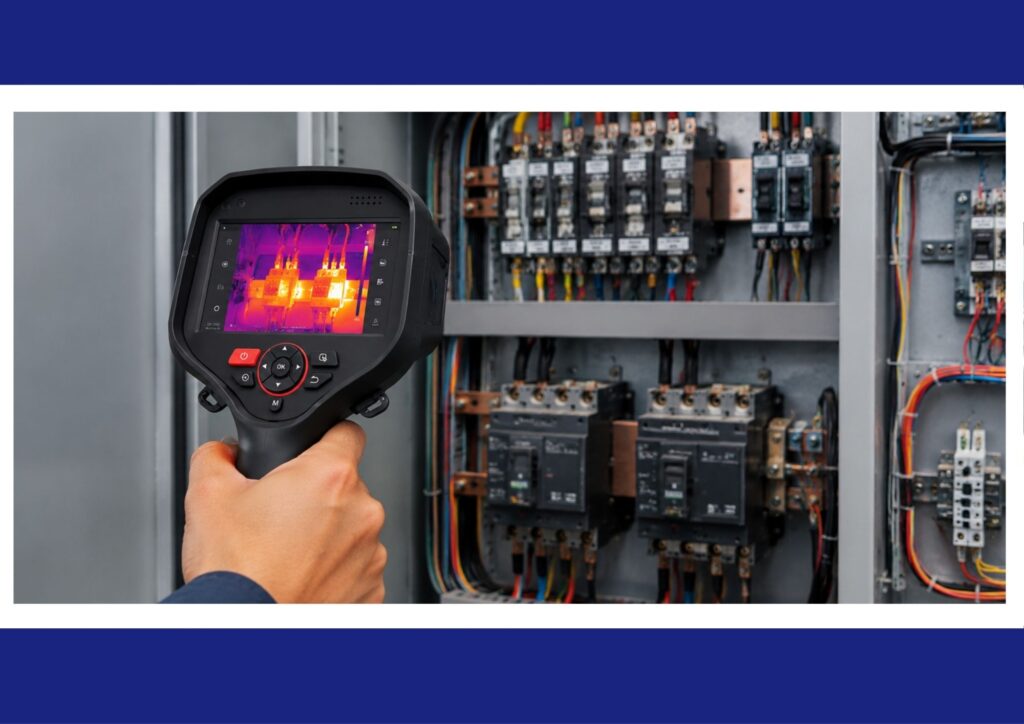

Portable Thermal Imaging Solutions

  • Portable Thermal imagers help maintenance, reliability, and operations professionals quickly.
  • Identify hot spots and cold spots that could indicate potential failures, helping them avoid unexpected downtime.
  • FLIR portable thermal imagers are available in various resolutions to cater to the needs of electrical and mechanical maintenance.
ultrasound detector device

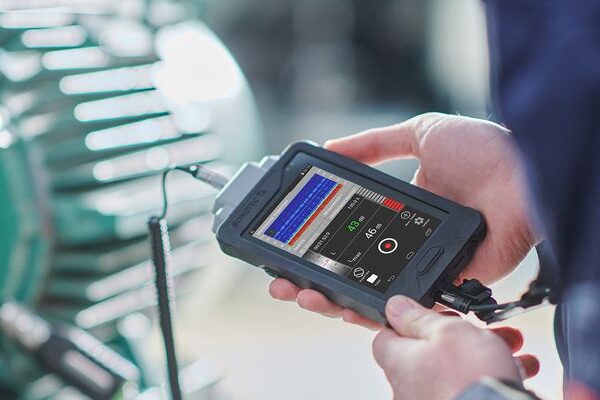

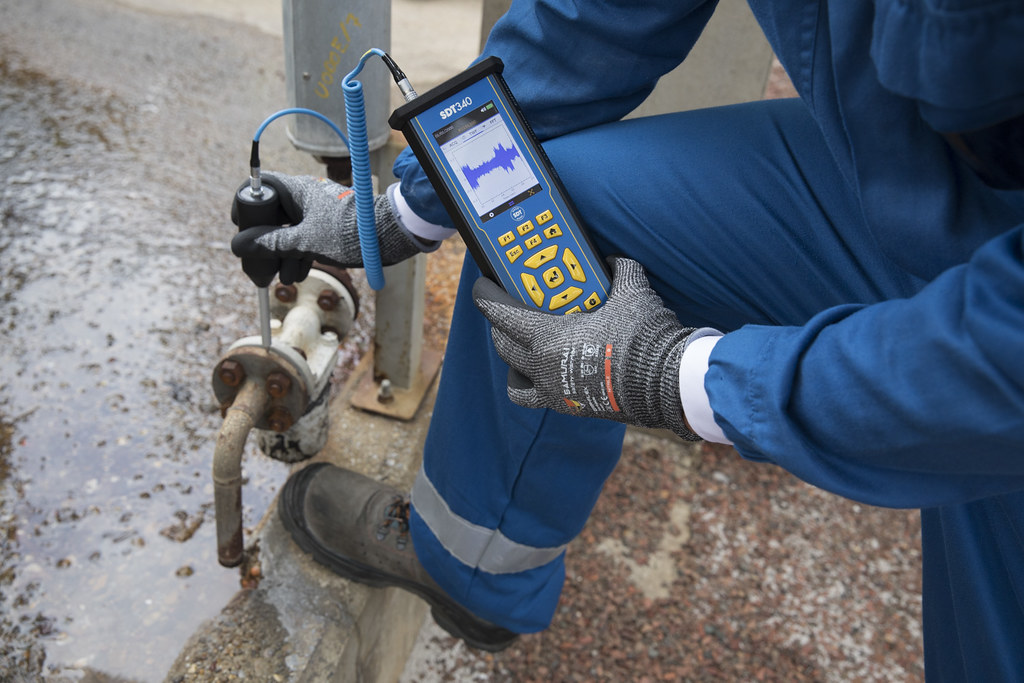

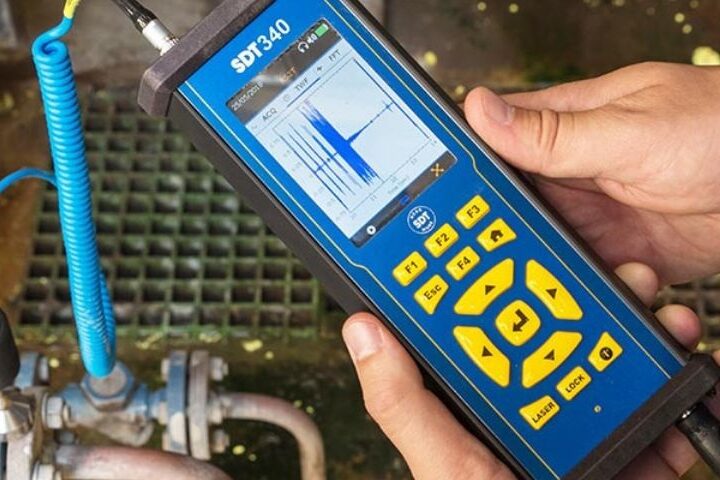

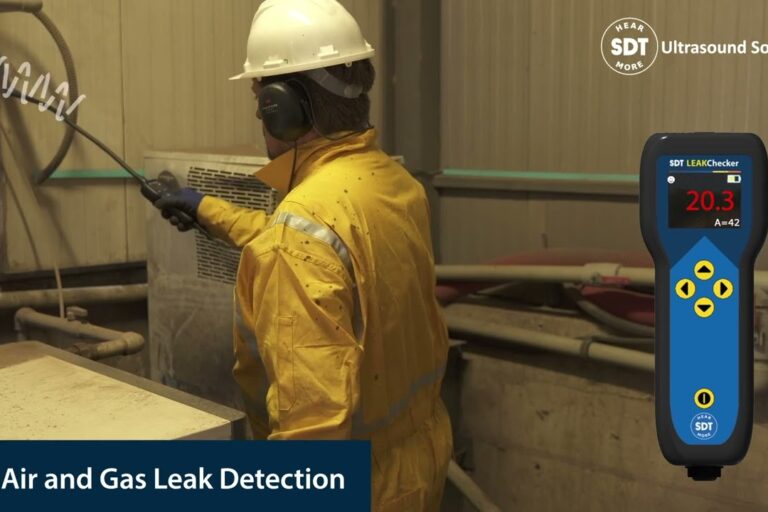

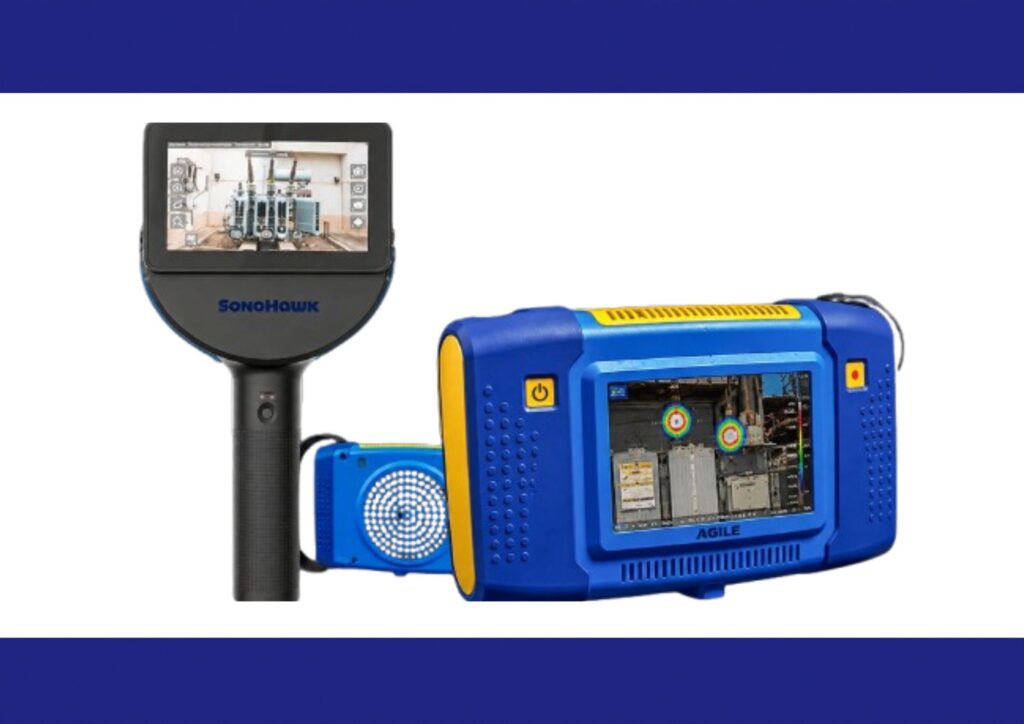

Ultrasound Detector Devices

  • Ultrasound detectors sense high-frequency signals and convert them into corresponding audible sounds.
  • They give you the ability to avoid catastrophic failures.
  • Ultrasound is a pillar of your asset condition management strategy.
  • Ultrasound lets you hear above the roar of the factory floor.
flir-thermal-cameras

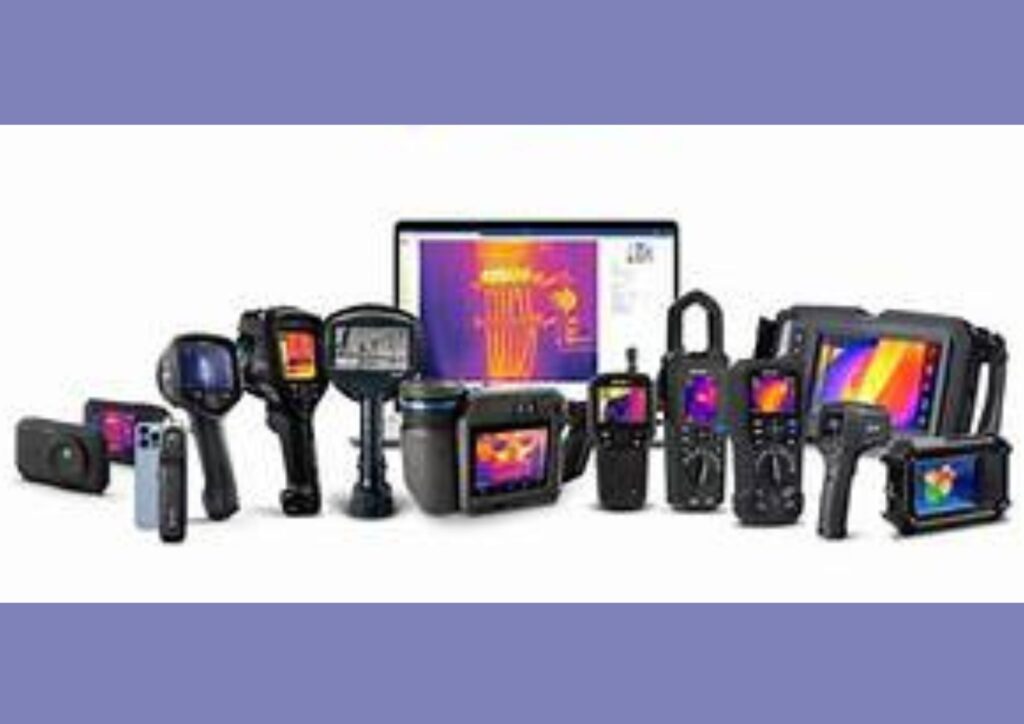

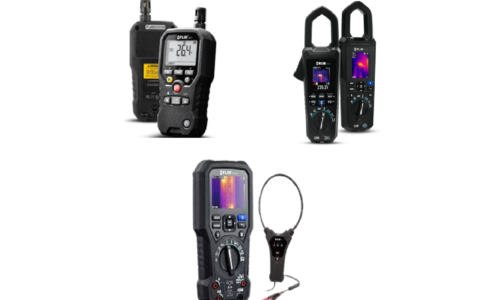

Flir Test & Measurement Products

  • FLIR Test & Measurement instruments are designed to meet the challenges of your industrial application.
  • It has advanced options such as Infrared Guided Measurement, high protection ratings, data logging, and the ability to send data.
extech-test-measurement-products

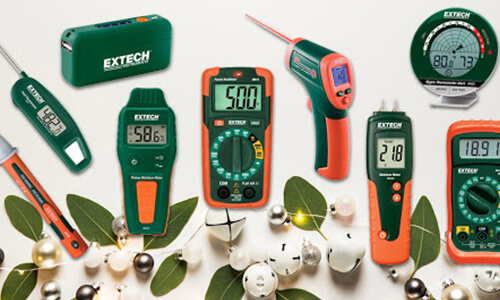

Extech Test & Measurement Products

  • Extech’s test equipment has offered an unsurpassed selection of test equipment.
  • Extech continues to develop and launch innovative new meters that are known for convenient, multi-functional capabilities, and meters with advanced features for integration with mobile devices.

Expertise in Thermography

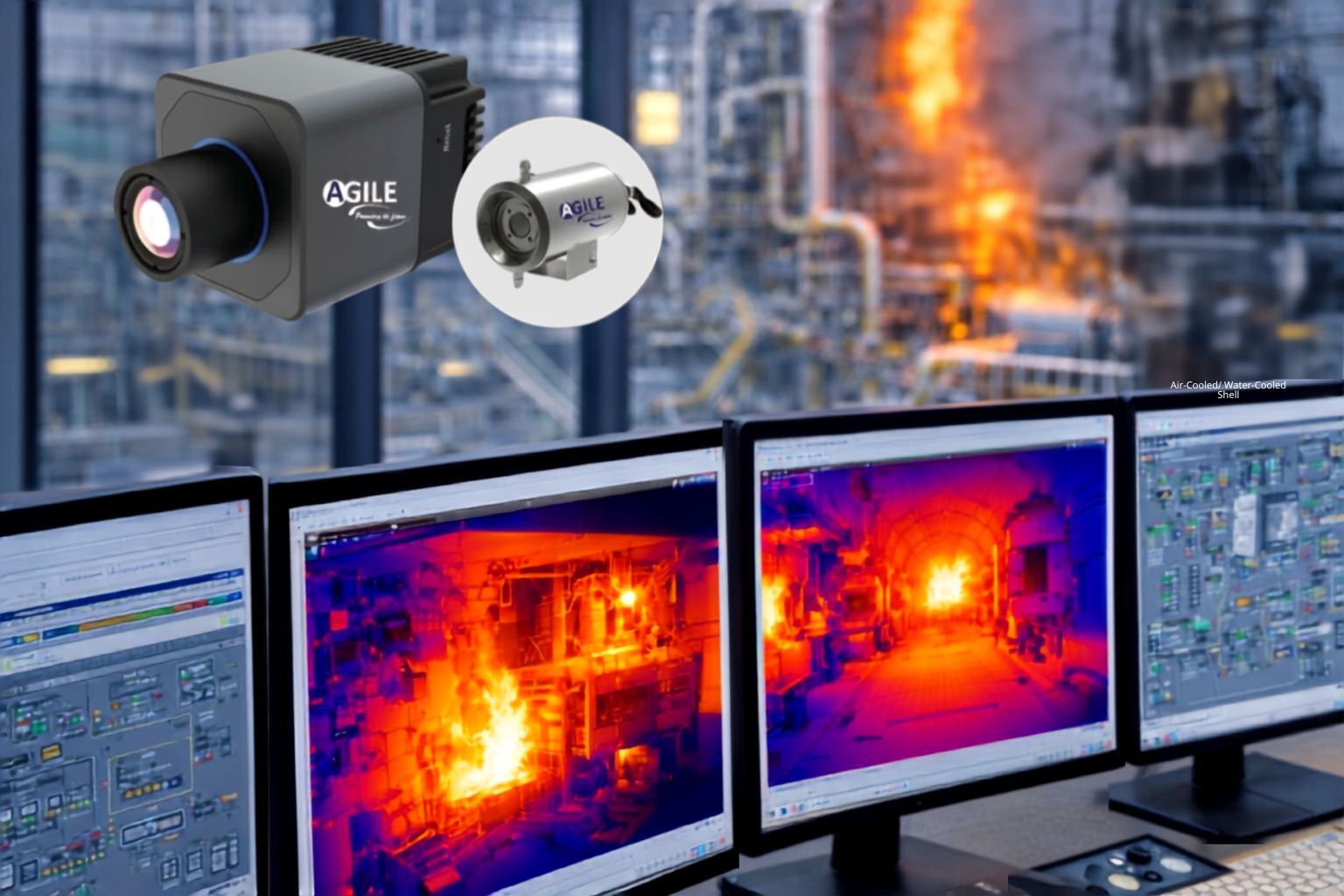

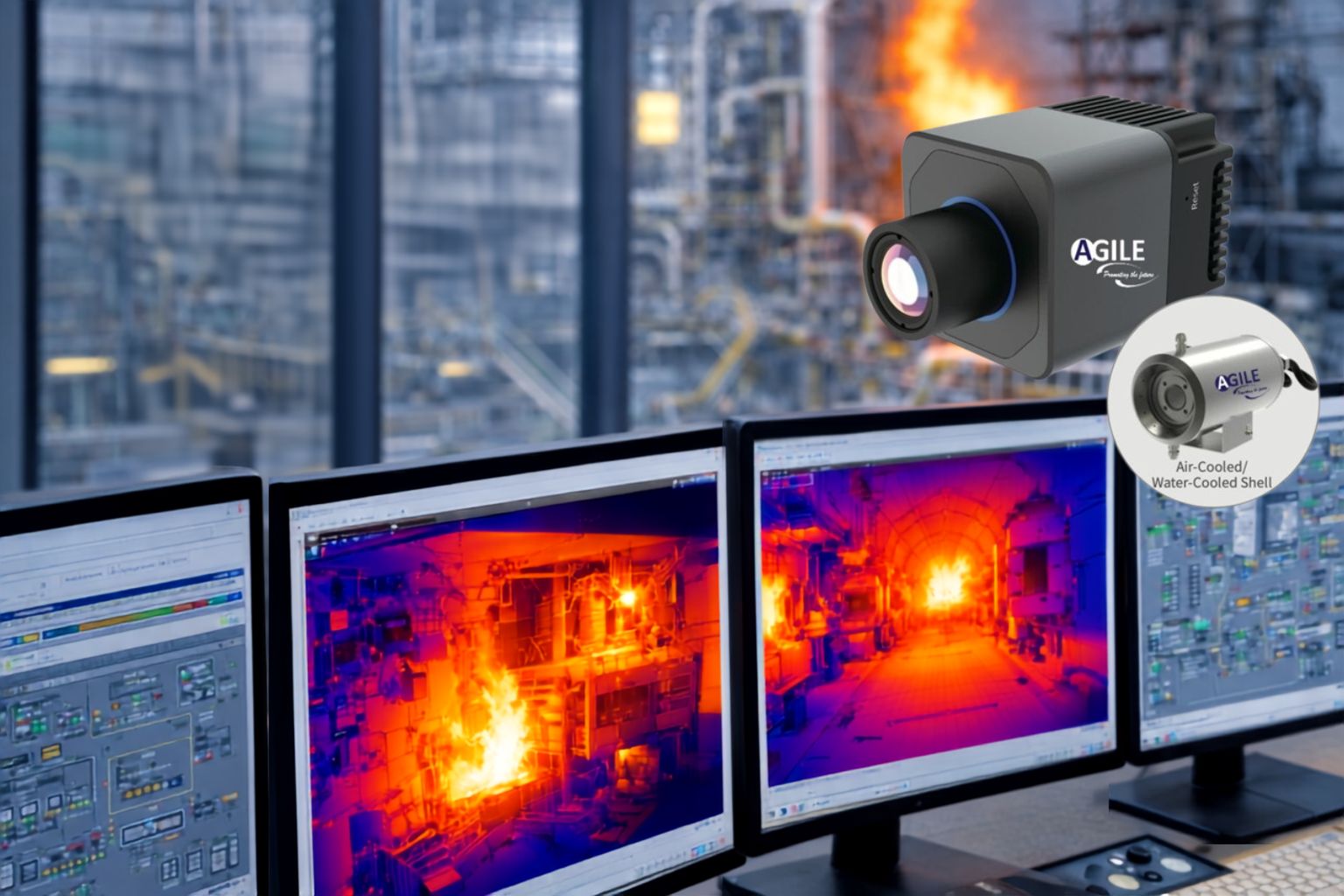

Agile offers Temperature based Automation solutions catering to the needs of Railways, Power Sector & Process Industries. Our solutions revolve around Thermal Imaging Cameras with AI software based on customer’s requirement.
