INFRARED CAMERA WITH EXTENDED TEMPERATURE RANGE

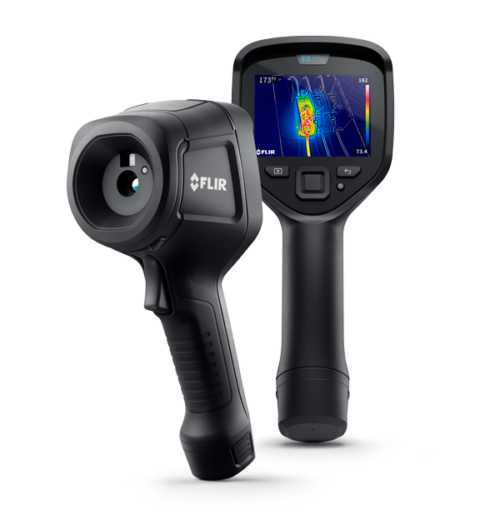

FLIR E8-Pro

FLIR E8-XT is the perfect tool for diagnosing electrical, mechanical, and building problems, thanks to its 76,800 (320 x 240) pixel infrared detector and expanded, -20°C to 550°C (-4°F to 1022°F) temperature range. FLIR MSX® image enhancement provides extraordinary thermal imaging detail, while the built-in Wi-Fi allows users to quickly connect with the FLIR Tools® Mobile app for sharing images and sending reports easily from any location.

Request Info
SIMPLE, INTUITIVE CONTROLS

Automatic and focus-free, with clear on-screen navigation to measurement tools and settings

SHARE IMAGES AND FINDINGS EASILY

Download standard JPEGS, create reports and share what you’ve found via a Wi-Fi connection to the FLIR Tools Mobile app

BUILT FOR YOUR TOUGH WORK ENVIRONMENT

Lightweight and well-balanced, the E8-XT has an IP54 enclosure and easily withstands a 2-meter drop test

OVERVIEW

Accuracy
±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Detector Type Uncooled microbolometer
Field of view (FOV)
45° × 34°
IR Resolution 320 × 240 pixels
List of Contents •Infrared camera •Hard transport case •Battery (inside the camera) •USB cable •Power supply/charger with EU, UK, US, and Australian plugs •Printed documentation
Multi-Spectral Dynamic Imaging (MSX) IR image enhanced with visible camera detail
Object Temperature Range –20°C to 550°C (-4°F to 1022°F) in two ranges
Packaging Size 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)
Thermal Sensitivity/NETD <0.05°C (0.09°F) / <50 mK
FLIR Screen-EST Mode No

COMPLIANCE & CERTIFICATIONS

Certifications UL, CSA, CE, PSE, and CCC

CONNECTIONS & COMMUNICATIONS

AC Operation
AC adapter, 90–260 VAC input, 5 VDC output to the camera
Interface
USB Micro: Data transfer to and from PC and Mac device
WiFi •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm

ENVIRONMENTAL

EMC
•WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B
Humidity (Operating and Storage) IEC 60068-2-30/24 h 95% relative humidity
Operating Temperature Range
–15°C to 50°C (+5°F to 122°F)
Radio Spectrum •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm
Shock 25 g (IEC 60068-2-27)
Storage Temperature Range –40°C to 70°C (–40°F to 158°F)
Emissivity table/correction
Emissivity table of predefined materials/variable from 0.1 to 1.0
Encapsulation/Drop IP 54 (IEC 60529)/2m (6.6 ft.)

IMAGING & OPTICAL

Color Black and gray
Color palettes
Black & white, iron, and rainbow
f-number
1.5
Focus Focus free
Image Adjustment Automatic adjust/lock image
Image Frequency
9 Hz
Image Modes Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
Minimum Focus Distance 0.5 m (1.6 ft.)
Picture-in-Picture
IR area on the visual image
Spatial resolution (IFOV) 3.4 mrad
Spectral Range 7.5–13 µm
Digital Camera Resolution/FOV 640 × 480/55° × 43°

MEASUREMENT & ANALYSIS

Isotherm
Above alarm, below alarm
Reflected apparent temperature correction
Automatic, based on the input of reflected temperature
Set-up Commands Local adaptation of units, language, date and time formats
Spot Meter Center spot; box with min./max
Spotmeter and Area Center spot; box with min./max.

METER DATA

Camera size (L x W x H) 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)
Camera weight incl battery
0.575 kg (1.27 lb.)
Display
3.0 in. 320 × 240 color LCD

POWER

Charging system Battery is charged inside the camera or in the specific charger
Charging Time 2.5 hours to 90% capacity in camera. 2 hours in charger
Power Management
Automatic shut-down
Battery type & operating time Rechargeable 3.6 V Li-ion battery; approx. 4 hours typical use

STORAGE MEDIA

File Formats Standard JPEG, 14-bit measurement data included
