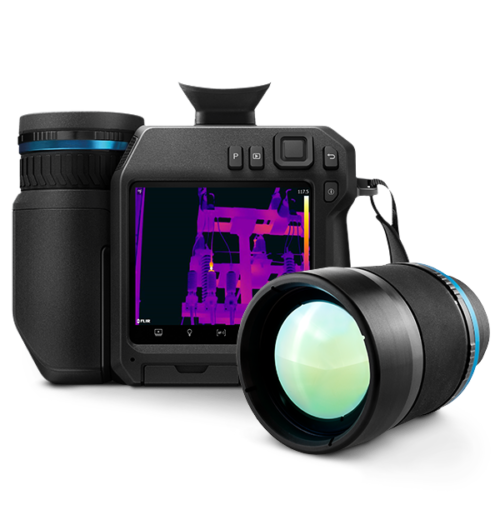

The FLIR T840 infrared camera is designed to help electric utility and other thermography professionals comfortably survey equipment both indoors or outdoors and seek out signs of failure all day long. Thanks to an integrated eyepiece viewfinder and a bright 4-inch color LCD display, the T840 makes it easy to conduct inspections outside in bright, challenging light conditions. The 180° rotating lens platform and thoughtful ergonomic design help users quickly diagnose failing components in hard-to-reach areas. A 6° telephoto lens option is available to ensure accurate temperature measurement of small targets from farther distances.
Request Info
SAFELY AND COMFORTABLY ASSESS EQUIPMENT
Scan large areas from a safe distance with 464 x 348 resolution, and reduce the strain of full-day inspections with the 180° rotating optical block
MAKE CRITICAL DECISIONS QUICKLY
Get industry-leading image clarity from FLIR Vision Processing™, MSX®, and UltraMax® to help you make the right call – fast
DESIGNED TO MAKE YOUR WORK EASIER
Get the most out of your workday with rapid reporting features that help you organize findings in the field
OVERVIEW
| Accuracy |
|
| IR Resolution | 464 x 348 (161,472 pixels) |
| Laser Pointer | Yes |
| Object Temperature Range | -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F) |
| Programmable Buttons | 2 |
| Thermal Sensitivity/NETD | <30 mK at 30°C (42° lens) |
| Text | Predefined list or touchscreen keyboard |
| Time Lapse | 10 sec to 24 sec |
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth |
| Weight & Dimensions (without lens) | 1.3 kg (2.9 lbs), 140 x 201 x 84 mm (5.5 x 7.9 x 3.3 in) |
| Screen EST Mode | Yes |
| Sampling Average in Screen EST Mode | Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature |
| Accuracy [Drift] in Screen EST Mode | Accuracy (drift): ±0.3°C (±0.5°F) |
CONNECTIONS & COMMUNICATIONS
| Communication Interfaces | USB 2.0, Bluetooth, Wi-Fi |
| Storage Media | Removable SD Card |
| Video Out | DisplayPort over USB Type-C |
| METERLiNK | Yes |
ENVIRONMENTAL
| Operating Temperature Range | -15°C to 50°C (5°F to 122°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Shock & Vibration & Encapsulation | 25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6 / IP 54; EN/UL/CSA/PSE 60950-1 |
IMAGING & OPTICAL
| Color Palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Detector Type and Pitch | Uncooled microbolometer, 17 µm |
| Digital Camera | 5 MP, with built-in LED photo/video lamp |
| Digital Zoom | 1.6x continuous |
| f-number | f/1.5 |
| Focus | Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual |
| Global Positioning System (GPS) | Automatic image tagging |
| Image Frequency | 30 Hz |
| Image Stretch | From touchscreen, on infrared image only |
| Lens Identification | Automatic |
| Minimum Focus Distance | lens – 1.0 m |
| Non-Radiometric IR or visual video | H.264 to the memory card |
| Non-Radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
| Picture-in-Picture | Resizable and movable |
| Radiometric IR video recording | Real-time radiometric recording (.csq) |
| Radiometric IR video streaming | Yes, over UVC or Wi-Fi |
| Special Range | 7.5 – 14.0 µm |
| Viewfinder | Yes |
| Ultramax | Quadruples pixel count; activated in the menu and processed in FLIR Tools |
| Ultramax Resolution | 645,888 effective pixels |
MEASUREMENT & ANALYSIS
| Area measurement information |
|
| Laser Distance Meter |
|
| Measurement Presets | No measurements, center spot, hot spot, cold spot. User Preset 1, User Preset 2 |
| Spotmeter and Area |
|
METER DATA
| Display |
|
POWER
| Battery operating time | Approx. 4 hours at 25°C (77°F) ambient temperature and typical use |
| Battery Type | Li-ion battery, charged in camera or on a separate charger |
SHIPPING INFORMATION
| Packaging | Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C) |
STORAGE MEDIA
| Image File Formats | Standard JPEG with measurement data included |
| Image Storage Mode | Infrared, visual, MSX®, Picture-in-Picture |
