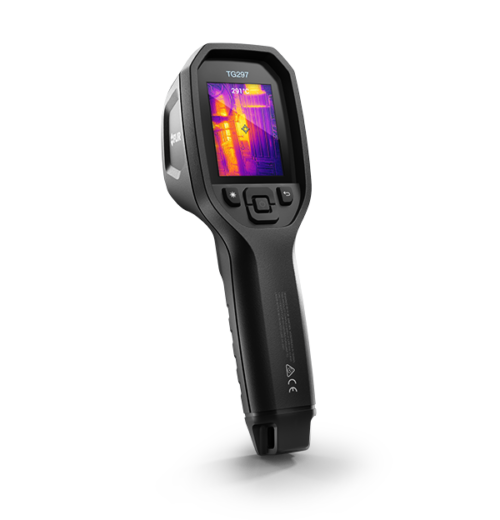

The FLIR TG297 stands out as a unique industrial diagnostic tool that merges precise temperature measurement with thermal imaging capabilities up to 1030°C (1886°F). FLIR’s patented MSX® (Multi-Spectral Dynamic Imaging) enhancement sharpens image clarity by embossing key visual details on thermal images. The TG297 is perfect for high-temperature industrial applications, including monitoring glass furnaces, kilns, forges, and manufacturing processes. It enables accurate fault detection, facilitates efficient repairs, and provides image records to ensure your team that equipment and systems are operating safely and at optimal performance.
Request Info
Quickly Identify Issues
Measure a broad temperature range from -25°C to 1030°C (-13°F to 1886°F) using a 160 × 120 IR pixel imager (19,200 pixels).
Capture Clear Thermal Images
Diagnose issues quickly on high-temperature targets by activating the high-temperature filter over the lens for a detailed image.
Operate Safely in Tough Conditions
Measure high-temperature objects (like a glass furnace) from a safe distance using a portable tool safeguarded by an IP54 enclosure.
| Specification | Details |
|---|---|
| IR Resolution | 160 × 120 pixels |
| Thermal Sensitivity/NETD | <70 mK |
| Accuracy | ±1.5°C (2.7°F) for 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 1030°C (212°F to 1886°F) |
| Field of View (FOV) | 57° × 44° |
| Image Modes | • MSX® (Multi Spectral Dynamic Imaging) • Visual with temperature reading |
| Display | 320 × 240 pixel, 2.4 in color LCD |
| Storage Media | eMMC 4 GB |
| Imaging & Optical | |
| Built-in Digital Camera | Yes |
| Color Palettes | Iron, Rainbow, White hot, Black hot, Arctic, Lava |
| Detector Pitch | 12 µm |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Digital Image Enhancement | Yes |
| Focus | Focus free |
| Gallery | Yes |
| Image Frequency | 8.7 Hz |
| Laser | Class 1 laser indicates the temperature measurement area; button-activated |
| Minimum Focus Distance | 0.3 m (0.98 ft) |
| Minimum Measurement Distance | 0.26 m (0.85 ft) |
| Spectral Range | 7.5 – 14 µm |
| Measurement & Analysis | |
| Camera Size (L x W x H) | 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in) |
| Camera Weight incl Battery | 0.394 kg (13.9 oz) |
| Center Spot | Yes |
| Emissivity Correction | Yes: 4 preset levels with custom adjustment of 0.1–0.99 |
| Object Temperature Range | -25°C to 1030°C (-13°F to 1886°F) |
| Set-up Commands | • Local adaptation of units, language, date, and time formats • Screen brightness (high, medium, low) • Gallery, deletion of images |
| Spot Meter | Center spot on/off |
| User Interface | |
| Languages | Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish |
| Power | |
| Battery Charge Life | 30 days minimum |
| Battery Operating Time | 5 hours continuous scanning, 4.5 hours with laser on |
| Battery Type | Rechargeable Li ion battery |
| Battery Voltage | 3.7 V |
| Charging System | Battery is charged inside the camera |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Charging Time | 4 hours to 90%, 6 hours to 100% |
| Power Management | Adjustable: off, 5 min., 15 min., 30 min. |
| Environmental & Certifications | |
| Certifications | CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan |
| Drop Test | Designed for 2 m (6.6 ft) |
| EMC | • EN 61000-6-3 • EN 61000-6-2 • FCC 47 CFR Part 15 Class B |
| Encapsulation | IP 54 (IEC60529) |
| Humidity (Operating and Storage) | 0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F)) |
| Operating Temperature Range | -10°C to 45°C (14°F to 113°F) |
| Radio Spectrum | • ETSI EN 300 328 • FCC Part 15.249 • RSS-247 Issue 2 • EN 301 489-1:2011 • EN 301 489-17:2009 |
| Safety | CE/CB/EN61010/UL |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | -30°C to 55°C (-22°F to 131°F) |
| Tripod Mounting | 1/4 in.-20 on handle bottom |
| Vibration | 2 g (IEC 60068-2-6) |
| Warranty | FLIR 2-10 warranty |
| Includes | TG297, printed documentation, wrist strap lanyard, USB A to USB C cable, carry pouch |
