Thermal Camera for Automotive Diagnostics

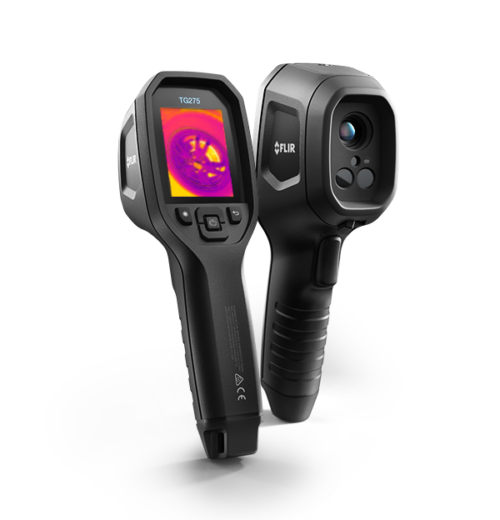

FLIR TG275
The FLIR TG275 is specifically designed for automotive maintenance and repair technicians at Agile Microsys, enabling them to accelerate diagnostic procedures and uncover undetected issues. With its IGM™ (Infrared Guided Measurement) feature, this diagnostic tool combines non-contact temperature measurement and thermal imaging, helping technicians troubleshoot repairs, identify potential faults, and capture images that provide customers with assurance that the problem has been resolved. This cost-effective thermal imager is perfect for diagnosing a wide range of issues, including relays and switches, parasitic battery drain, drive train components, HVAC system vents, and much more.
Identify more problems, faster
With a 19,200 pixel IR camera and a temperature range extending up to 550°C (1022°F), the FLIR TG275 effectively exceeds the limitations inherent in standard spot IR thermometers.
Superior image quality, affordable price
Experience sharp visual details with FLIR MSX®, showcased on a vibrant 2.4-inch display, all at an affordable price.
Rugged and reliable
The durable, drop-tested design features an IP54 enclosure, safeguarding the camera from dirt, dust, and oil.
| Category | Specification |
|---|---|
| IR Resolution | 160 × 120 pixels |
| Thermal Sensitivity/NETD | <70 mK |
| Accuracy | ±1.5°C (2.7°F) for 50°C to 100°C (122°F to 212°F); ±3°C (5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 550°C (212°F to 1022°F) |
| Field of View (FOV) | 57° × 44° |
| Image Modes | MSX® (Multi Spectral Dynamic Imaging), Visual with temperature reading |
| Display | 320 × 240 pixel, 2.4 in color LCD |
| Storage Media | eMMC 4 GB |
| Automatic Image Adjustment | Yes |
| Built-in Digital Camera | Yes |
| Color Palettes | Iron, Rainbow, White hot, Black hot, Arctic, Lava |
| Detector Pitch | 12 µm |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Digital Image Enhancement | Yes |
| Laser | Class 1 laser indicates the temperature measurement area; button-activated |
| Minimum Focus Distance | 0.3 m (0.98 ft) |
| Minimum Measurement Distance | 0.26 m (0.85 ft) |
| Spectral Range | 7.5–14 µm |
| Measurement Accuracy | ±1.5°C (2.7°F) for 50°C to 100°C (122°F to 212°F); ±3°C (5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 550°C (212°F to 1022°F) |
| Camera Size (L x W x H) | 210 mm × 64 mm × 81 mm (8.3 in × 2.5 in × 3.2 in) |
| Camera Weight (with battery) | 0.394 kg (13.9 oz) |
| Center Spot | Yes |
| Emissivity Correction | Yes: 4 preset levels with custom adjustment (0.1–0.99) |
| Object Temperature Range | -25°C to 550°C (-13°F to 1022°F) |
| Spot Meter | Center spot on/off |
| Battery Operating Time | 5 hours continuous scanning, 4.5 hours with laser on |
| Battery Type | Rechargeable Li-ion |
| Battery Voltage | 3.7 V |
| Charging System | Battery is charged inside the camera |
| Charging Time | 4 hours to 90%, 6 hours to 100% |
| Power Management | Adjustable: off, 5 min., 15 min., 30 min. |
| Drop Test | Designed for 2 m (6.6 ft) |
| Encapsulation | IP54 (IEC 60529) |
| Operating Temperature Range | -10°C to 90°C (14°F to 194°F) |
| Storage Temperature Range | -30°C to 55°C (-22°F to 131°F) |
| Radio Spectrum | ETSI EN 300 328, FCC Part 15.249, RSS-247 Issue 2, EN 301 489-1:2011, EN 301 489-17:2009 |
| Safety | CE/CB/EN61010/UL |
| Shock | 25 g (IEC 60068-2-27) |
| Vibration | 2 g (IEC 60068-2-6) |
| Tripod Mounting | 1/4 in.-20 on handle bottom |
| Warranty | FLIR 2-10 warranty |
| Included Accessories | TG275, printed documentation, wrist strap lanyard, USB A to USB C cable, carry pouch |
| Weight (with battery) | 0.394 kg (13.9 oz.) |
