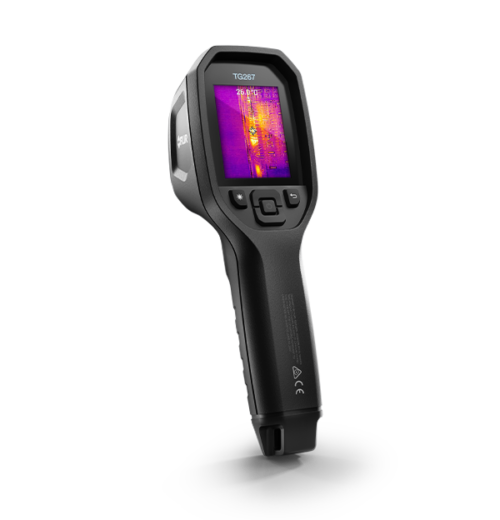

Agile Microsys presents the FLIR TG267, a powerful tool that goes beyond single-spot IR thermometers by enabling you to both visualize and assess hot and cold spots, often indicative of critical issues. Ideal for commercial electrical, facility maintenance, and HVAC applications, this advanced thermal camera features a vibrant 2.4-inch screen, significantly reducing diagnostic time and streamlining repair and maintenance reporting. With patented FLIR MSX® (Multi-Spectral Dynamic Imaging), the TG267 improves image clarity by overlaying visual details on thermal images, giving you more context to identify potential faults. It also allows you to record images, helping you monitor maintenance history and provide customers with confidence that issues have been resolved.
Request Info
Identify Problems Quickly
Agile Microsys provides the FLIR TG267, designed for fast problem identification. Measure a wide range of temperatures from -25°C to 380°C (-13°F to 716°F) with a true 160 × 120 IR pixel imager (19,200 pixels) for precise diagnostics.
Produce Crisp Thermal Images
Agile Microsys offers the FLIR TG267, enabling you to produce crisp thermal images. Display and record MSX®-enhanced thermal images or visual images with accurate temperature readings for effective troubleshooting.
Work with Confidence in Rugged Environments
Agile Microsys offers the FLIR TG267, built for rugged use with an IP54 enclosure that shields against dust, water, and withstands 2-meter drops for safe, reliable operation.
OVERVIEW
| Accuracy | ±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 380°C (212°F to 716°F) |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Field of view (FOV) |
|
| IR Resolution | 160 × 120 pixels |
| Laser | Class 1 laser indicates the temperature measurement area; button-activated |
| Object Temperature Range | -25°C to 380°C (-13°F to 716°F) |
| Thermal Sensitivity/NETD | <70 mK |
| Warranty | FLIR 2-10 warranty |
| Built-in Illuminator LED | 100 lumens, 6500 K flashlight |
| FLIR Tools | Compatible |
CONNECTIONS & COMMUNICATIONS
| Interface | USB 2.0, Bluetooth |
| Storage Media |
|
| USB | USB Type-C: data transfer/power |
| USB – Standard | USB 2.0 High Speed |
ENVIRONMENTAL
| Drop test | Designed for 2 m (6.6 ft) |
| EMC | • EN 61000-6-3 • EN 61000-6-2 • FCC 47 CFR Part 15 Class B |
| Emissivity Correction | Yes: 4 preset levels with custom adjustment of 0.1–0.99 |
| Encapsulation |
|
| Humidity (Operating and Storage) | 0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F)) |
| Operating Temperature Range |
|
| Radio Spectrum | • ETSI EN 300 328 • FCC Part 15.249 • RSS-247 Issue 2 • EN 301 489-1:2011 • EN 301 489-17:2009 |
| Safety | CE/CB/EN61010/UL |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range |
|
| Tripod Mounting |
|
| Vibration | 2 g (IEC 60068-2-6) |
IMAGING & OPTICAL
| Built-in Digital Camera | Yes |
| Color palettes |
|
| Detector Pitch |
|
| Digital image enhancement |
|
| Focus |
|
| Gallery |
|
| Image Adjustment |
|
| Image Frequency | 8.7 Hz |
| Image Modes | • MSX® (Multi-Spectral Dynamic Imaging) • Visual with the temperature reading |
| Minimum Focus Distance |
|
| Minimum Measurement Distance | 0.26 m (0.85 ft) |
| Spectral Range | 7.5 – 14 µm |
| Digital Camera Resolution/FOV | 2 MP (1600 × 1200 pixels), 71° × 56° FOV |
MEASUREMENT & ANALYSIS
| Center spot |
|
| IR Temperature Resolution |
|
| IR Thermometer Measurement Acquisition | Continuous scanning |
| Languages | Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish. |
| Set-up Commands | • Local adaptation of units, language, date, and time formats • Screen brightness (high, medium, low) • Gallery, deletion of images |
| Spot Meter | Center spot on/off |
METER DATA
| Camera size (L x W x H) | 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in) |
| Camera weight incl battery |
|
| Cover Glass Material |
|
| Display |
|
POWER
| Battery operating time | 5 hours continuous scanning, 4.5 hours with laser on |
| Battery type | Rechargeable Li-ion battery |
| Battery voltage |
|
| Charging system |
|
| Charging Temperature |
|
| Charging Time |
|
| Power Management |
|
| Battery charge life | 30 days minimum |
SHIPPING INFORMATION
| Includes | TG267, printed documentation, wrist strap lanyard, USB A to USB C cable, carry pouch |
STORAGE MEDIA
| Image Storage Capacity | 4 GB for storage of up to 50,000 pictures |
| Memory Type |
|
| Saved image format | JPEG |
