MSX® Thermal Camera

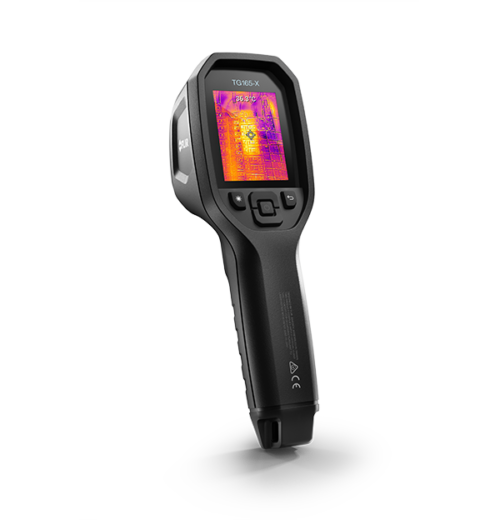

FLIR TG165-X

The FLIR TG165-X from Agile Microsys enables you to visualize hot and cold spots that may indicate electrical faults, mechanical breakdowns, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on the screen, allowing for efficient inspections and quicker identification of problem sources compared to a single-spot IR thermometer. The FLIR patented MSX image enhancement adds visual details to full thermal images, enabling you to see components clearly and read labels easily. The built-in bullseye laser ensures precise targeting of the component for measurement, while the user-friendly buttons and settings facilitate quick and stress-free operation. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go straight out of the box.

Request Info

Pinpoint the source of system failures

Pinpoint the source of system failures with the FLIR TG165-X from Agile Microsys. This tool accelerates inspections by offering a thermal view that instantly reveals whether a target is overheating, along with temperature measurements of up to 300°C (572°F).

Complete inspections quickly and easily

With Agile Microsys, you can complete inspections quickly and easily. Utilize the bullseye laser pointer to accurately target the area you’re measuring, and effortlessly capture thermal MSX and visual images with a simple trigger pull. This user-friendly feature streamlines your inspection process, allowing for more efficient and effective diagnostics.

Work with confidence

With Agile Microsys, you can work with confidence. The 2.4-inch display allows you to easily view live images, while the bright LED worklight enables you to see into dark or hard-to-reach areas. This combination ensures you have the visibility and clarity needed for effective inspections, no matter the environment.

Specification Details
IR Resolution 80 × 60 pixels
Thermal Sensitivity/NETD <70 mK
Accuracy 50°C to 100°C (122°F to 212°F), acc. ±1.5°C (±3°F); 0°C to 50°C (32°F to 122°F) and 100°C to 300°C (212°F to 572°F), acc. ±2.5°C (±5°F); -25°C to 0°C (-13°F to 32°F), acc. ±3°C (±7°F)”
Field of View (FOV) 51° × 66°
Image Modes MSX® (Multi Spectral Dynamic Imaging), Visual
Storage Media eMMC 4 GB
Camera Software Update USB cable or SD card
Color Palettes Iron, Rainbow, Whitehot, Blackhot, Arctic, Lava
Detector Pitch 17 µm
Display Resolution 320 × 240 pixels
Focus Fixed
Image Frequency 8.7 Hz
Minimum Focus Distance 0.3 m (0.98 ft)
Minimum Measurement Distance 0.26 m (0.85 ft)
Resolution 2 MP (1600 × 1200 pixels)
Distance to Spot Ratio (D

)

24:1
Emissivity Correction Yes: 4 pre-set levels + custom adjustment
Object Temperature Range -25°C to 300°C (-13°F to 572°F)
Spot Meter Center spot on/off
Display Technology TFT
Languages Supported Multiple languages (English, Spanish, etc.)
Battery Type Rechargeable Li-ion battery
Battery Operating Time 5 hours of scanning (LCM medium brightness); 4.5 hours with laser on (LCM medium brightness)
Battery Charge Life Minimum 30 days
Charging System Inside the camera
Charging Temperature 0°C to 45°C (32°F to 113°F)
Charging Time 4 hours to 90%, 6 hours to 100%
Drop Test Designed for 2 m (6.56 ft)
Encapsulation IP54 (IEC60529)
Operating Temperature Range -10°C to 45°C (14°F to 113°F)
Storage Temperature Range -30°C to 55°C (-22°F to 131°F)
Tripod Mounting UNC ¼″-20
Weight (Battery Included) 0.394 kg (13.9 oz)
Dimensions (L × W × H) 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in)
Light Output 100 lumens
