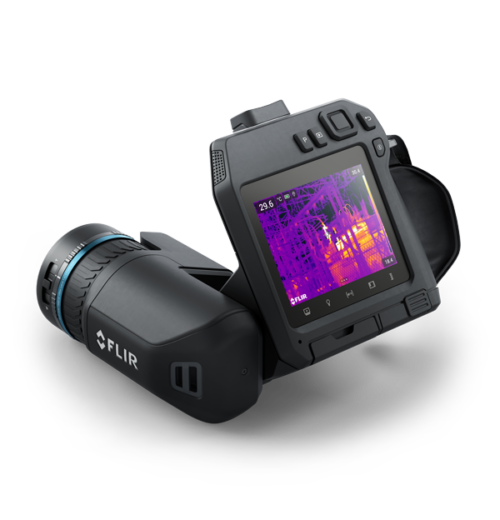

The FLIR T865 thermal imaging camera serves as an essential non-contact inspection tool, featuring a 180° rotating optical block that empowers users to safely and comfortably evaluate the condition of critical electrical and mechanical equipment in utility and manufacturing applications. Equipped with advanced capabilities, it provides unmatched temperature measurements down to -40°C, achieving an accuracy of ±1°C or ±1% of reading. The 1-Touch Level/Span contrast enhancement and laser-assisted autofocus ensure you receive highly precise temperature readings every time.
For added versatility, pair the T865 with a FLIR FlexView™ dual field-of-view lens, allowing you to seamlessly switch from wide-area scanning to telephoto inspections. Alternatively, opt for a 6° FOV IR lens for examining small targets from considerable distances. The on-board Inspection Route system aids in recording temperature data and imagery in a logical sequence, facilitating quicker troubleshooting and repair. Agile Microsys proudly offers the FLIR T865, providing reliable thermal imaging solutions for your needs.
Request Info
Enhance Workflow Efficiency
Create inspection routes in FLIR Thermal Studio Pro and upload them to the T865 using Route Creator, enabling quick and efficient data collection and management.
Ensure Safety and Comfort
Evaluate equipment conditions safely from any angle or lighting, thanks to the 180° rotating optical block, integrated eyepiece viewfinder, and 4-inch color IPS display.
Make Quick, Informed Decisions
| Feature | Details |
|---|---|
| IR Resolution | 640 × 480 pixels |
| Thermal Sensitivity/NETD | <40 mK @ 30°C (24° lens) |
| Accuracy | ±1°C (±1.8°F) from 5 to 100°C; ±1% from 100 to 120°C; ±2°C (±3.6°F) from -40 to 100°C; ±2% from 100 to 650°C; 300 to 2000°C |
| Digital Camera | 5 MP with built-in LED photo/video lamp |
| Display | 4″, 640 × 480 pixel touchscreen LCD with auto-rotation |
| Storage Media | Removable SD card |
| Color Palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| Detector Type and Pitch | Uncooled microbolometer, 12 µm |
| Digital Zoom | 1-8x continuous |
| Focal Length | 29 mm (1.41 in) / 17 mm (.67 in) |
| Focus | Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual |
| Image Frequency | 30 Hz |
| Lens | DFOV (24°, 14°) |
| Minimum Focus Distance | 0.18 m (.59 ft), 24° / 1.0 m (3.28 ft), 14° |
| Non-radiometric IR Video Streaming | H.264 or MPEG-4 over Wi-Fi |
| Radiometric IR Video Recording | Real-time radiometric recording (.csq) |
| Spectral Range | 7.5 – 14.0 µm |
| UltraMax | Quadruples pixel count; processed in FLIR reporting software |
| Viewfinder | Yes |
| Measurement Presets | Various options including center spot, hot/cold spot |
| Object Temperature Range | -40°C to 120°C; 0°C to 650°C; 300°C to 2000°C |
| Display Technology | 4″, 640 × 480 pixel touchscreen LCD |
| Voice Recording | 60 sec. recording via built-in mic or Bluetooth |
| Battery Operating Time | Approx. 4 hours at 25°C (77°F) ambient |
| Operating Temperature Range | -15°C to 50°C (5°F to 122°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Compatible with FLIR Software | FLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, FLIR Atlas SDK |
| Packaging | Infrared camera, viewfinder eyecup, 2 batteries, charger, hard case, cables, 8 GB SD card, FLIR Thermal Studio Pro license (3-month) |
