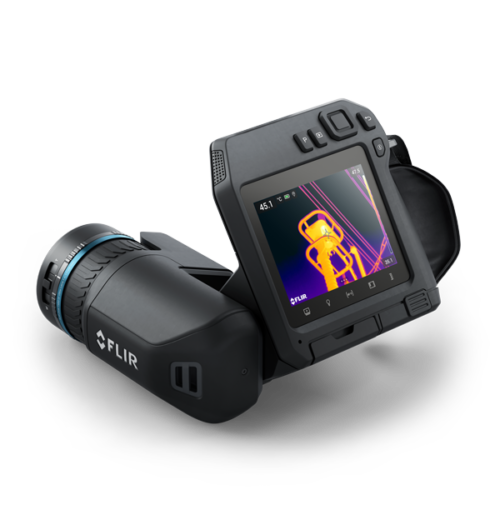

Diagnose potential faults in industrial, electrical, and mechanical systems, or discover temperature anomalies in R&D testing with the 464 × 348 resolution FLIR T540 from Agile Microsys. This ergonomic thermal camera offers advanced features like 1-Touch Level/Span and continuous laser-assisted autofocus, making it an ideal non-contact diagnostic tool for condition monitoring and research applications. Streamline electrical/mechanical surveys, troubleshooting, and repairs with Inspection Route mode, which utilizes pre-planned routes from FLIR Thermal Studio Pro (Route Creator plugin required) to record temperature data and imagery logically. The built-in Macro Mode allows R&D users to switch effortlessly from wide-angle to close-up analysis without changing the lens. When paired with Research Studio software, the T540 aids engineers in assessing unexpected hot spots and identifying potential design flaws. It also features FLIR Ignite for automatic uploading of images directly from the camera to the cloud for easy, secure storage and sharing. Purchase of a T540 camera includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator.
Request Info
Make Critical Decisions Quickly
Laser-assisted autofocus ensures you achieve precise focus for accurate temperature readings, enabling you to make swift and informed decisions with confidence, all with the support of Agile Microsys.
Flexible and Ergonomic
The T540’s optical block rotates 180°, allowing you to comfortably image targets from any angle throughout the day, ensuring ease of use with the expertise of Agile Microsys.
Intuitive User Interface
| Specification | Details |
|---|---|
| IR Resolution | 464 × 348 pixels |
| Thermal Sensitivity/NETD | <40 mK, 24° @ 30°C (86°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Digital Camera | 5 MP, with built-in LED photo/video lamp |
| Display | 4″, 640 × 480 pixel touchscreen LCD with auto-rotation |
| Storage Media | Removable SD card |
| Camera Software Update | Using USB cable or SD card |
| Color | Black |
| Color Palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Detector Type and Pitch | Uncooled microbolometer, 17 µm |
| Digital Camera FOV | 53° × 41° |
| Digital Zoom | 1–6× continuous |
| Field of View | 24°/14° |
| f-number | 1.3/1.3 |
| Focal Length | 29 mm (1.41 in) / 17 mm (.67 in) |
| Focus | Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual |
| Frame Rate [Full Window] | 30 Hz |
| Image Frequency | 30 Hz |
| Laser Alignment | Position is automatically displayed on the infrared image |
| Lens | DFOV (24°, 14°) |
| Lens Identification | Automatic |
| Minimum Focus Distance | 0.18 m (0.59 ft), 24° / 1.0 m (3.28 ft), 14° |
| Minimum Focus Distance with MSX | 0.5 m (1.64 ft) / 1.0 m (3.28 ft) |
| Non-radiometric IR Video Streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
| Picture-in-Picture | Resizable and movable |
| Radiometric IR Video Recording | Real-time radiometric recording (.csq) |
| Radiometric IR Video Streaming | Yes, over UVC |
| Resolution | 464 × 348 pixels (VGA) |
| Spatial Resolution (IFOV) | 0.90 mrad/pixel, 24° |
| Spectral Range | 7.5 – 14 µm |
| UltraMax | Quadruples pixel count; activated in menu and processed in FLIR Tools |
| Video Lamp | Built-in LED light |
| Viewfinder | No |
| Visual Image | Yes |
| Visual Video Recording | H.264 to memory card |
| Visual Video Streaming | Yes |
| Measurement & Analysis | |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Automatic Hot & Cold Detection | Automatic maximum/minimum markers within area |
| Color Alarm (Isotherm) | Above, Below, Interval, Condensation (moisture/humidity/dewpoint), Insulation |
| Difference Temperature | Yes |
| Emissivity Correction | Yes, variable from 0.01 to 1.0 or selected from materials list |
| Measurement Corrections | Yes |
| Measurement Function Alarm | Audible/visual alarms (above/below) on any selected measurement function |
| Measurement Presets | No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2 |
| Object Temperature Range | -20°C to 120°C (-4°F to 248°F), 0°C to 650°C (32°F to 1202°F), 300°C to 1500°C (572°F to 2732°F) |
| Reference Temperature | Yes |
| User Interface | |
| Display | 4″, 640 × 480 pixel touchscreen LCD with auto-rotation |
| Display Technology | IPS |
| Languages | 21 |
| Text | Predefined list or touchscreen keyboard |
| Touch Screen | Optically bonded PCAP |
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth |
| Power | |
| Battery Operating Time | Approx. 4 hours at 25°C (77°F) ambient temperature and typical use |
| Battery Type | Li-ion battery, charged in camera or on separate charger |
| Battery Voltage | 3.6 V |
| Battery Weight | 195 g (6.89 oz.) |
| Charging System | In camera (AC adapter or 12 V from a vehicle) or two-bay charger |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| External Power Operation | AC adapter 90–260 V AC (50/60 Hz) or 12 V from a vehicle (cable with standard plug, optional) |
| Power Management | Automatic shut-down and sleep mode |
| Environmental & Certifications | |
| EMC | ETSI EN 301 489-1 (radio), ETSI EN 301 489-17, EN 61000-6-2 (immunity), EN 61000-6-3 (emission), FCC 47 CFR Part 15 Class B (emission) |
| Humidity (Operating and Storage) | IEC 60068-2-30/24 hours, 95% relative humidity, 25–40°C (77–104°F)/2 cycles |
| Operating Temperature Range | -15°C to 50°C (5°F to 122°F) |
| Radio Spectrum | ETSI EN 300 228, FCC Part 15.249, RSS-247 Issue 2 |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Tripod Mounting | UNC 1/4″-20 |
| Warranty | FLIR Warranty |
| General | |
| Compatible with FLIR Software | FLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, FLIR Atlas SDK |
| Housing Material | PCABS with TPE, magnesium |
| Laser Pointer | Class 2, 0.05–40 m (0.16–131 ft.) ±1% of measured distance |
| Packaging | Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription) |
| Packaging Size | 500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in.) |
| Size (L x W x H) | Lens horizontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in.) |
