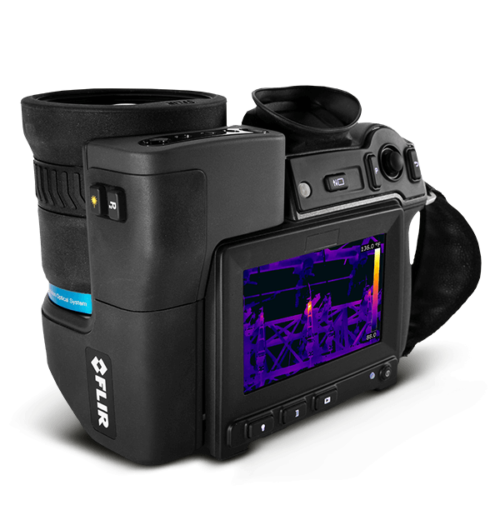

The FLIR T1050sc is a portable, high-speed, high-definition infrared camera from Agile Microsys. It captures full 1024 × 768 resolution images at 30 frames per second, making it ideal for engineers, researchers, and scientists who require the highest resolution and sensitivity in a flexible, battery-powered handheld device. The T1050sc allows you to capture lossless HD radiometric imagery at up to 120 Hz, which can be viewed, acquired, analyzed, and shared using FLIR ResearchIR Max or MathWorks® MATLAB.
Portable and Flexible
The FLIR T1050sc, available from Agile Microsys, is a battery-powered, handheld camera designed for mobility. Its Wi-Fi capabilities simplify image sharing, remote control, and viewing, enabling quick reporting wherever you need it.
Portable, Flexible
The FLIR T1050sc, offered by Agile Microsys, is a battery-powered, handheld camera that goes wherever you need it. With its Wi-Fi communication capabilities, it simplifies image sharing, remote control, and viewing, allowing for quick reporting and enhanced flexibility in your thermal imaging tasks.
High-Speed Data
Specification | Details |
---|---|
IR Resolution | 1024 × 768 pixels |
Detector Pitch | 17 µm |
Spectral Range | 7.5 – 14 µm |
Detector Type | Focal plane array (FPA), uncooled microbolometer |
Camera f-number | f/1.15 |
NETD | <20 mK @ 30°C (86°F) |
Frame Rate | 30 Hz (full window), 120 Hz (full window with HSI to computer), 240 Hz (½ window with HSI) |
Focus | One shot or manual |
Display | 4.3” Capacitive touch screen, 800 x 480 pixels |
Auto Orientation | Automatic landscape or portrait |
Available Lenses | 12° |
Built-in Digital Camera | 5 Mpixel with LED light |
Camera Size (L x W x H) | 167.2 mm × 204.5 mm × 188.3 mm (6.6 in. × 8.0 in. × 7.4 in.) |
Camera Software Update | Using USB cable or SD card |
Color Palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
Digital Zoom | 1–8× continuous |
Field of View | 12° × 9° |
Focal Length | 36 mm (1.42 in.) |
Minimum IR Focus Distance | 1.3 m (4.26 ft.) |
Minimum IR–Visual Alignment Distance | 1.3 m (4.26 ft.) |
MSX Resolution | 1024 × 768 pixels |
Non-Radiometric IR Video | H.264 to memory card |
Radiometric IR Video | Real-time radiometric recording (RTRR) to memory card |
Spatial Resolution (IFOV) | 0.47 mrad |
Time Constant | < 10 ms |
UltraMax | Yes |
Video Lamp | Built-in LED light |
Visual Image | Full color visual image |
Visual Video Recording | H.264 to the memory card |
Measurement & Analysis | |
Accuracy | ±1°C (±1.8°F) or ±1% at 25°C for temperatures between 5°C to 150°C |
Area Measurements | 5 + 5 areas (boxes and circles) with max./min./average |
Automatic Gain Control | Manual, Linear, Histogram |
Color Alarm (Isotherm) | Above/below/interval |
Difference Temperature | Delta temperature between measurement functions and reference temperature |
Emissivity Correction | Variable from 0.01 to 1.0 or selected from the materials list |
Object Temperature Range | –40°C to 150°C (–40°F to 302°F), 0°C to 650°C (32°F to 1202°F), 300°C to 2000°C (572°F to 3632°F) |
Communication & Data Storage | |
File Formats | Standard JPEG, measurement data included |
Image Storage Mode | Simultaneous storage of thermal and digital images in the same JPEG file |
Interface | USB Micro-B, Bluetooth, Wi-Fi, HDMI |
SD Card | One card slot for removable SD memory cards |
Weight | 1.9 kg (4.3 lb.) |
Housing Material | Magnesium |
User Interface | |
Display | Built-in touch screen, 4.3 in. wide screen LCD, 800 × 480 pixels |
Languages | Multiple languages including English, French, German, Italian, Japanese, etc. |
Voice Annotation | 60 seconds (via Bluetooth) stored with the image |
Power | |
Battery Operating Time | >2.5 hours at 25°C (68°F) |
Battery Type | Rechargeable Li-ion battery |
Charging System | In camera (AC adapter or 12 V from a vehicle) or two-bay charger |
Environmental & Certifications | |
Encapsulation | IP 54 (IEC 60529) |
Operating Temperature Range | -40° to 2000°C |
Tripod Mounting | UNC 1/4″-20 |
Safety | EN/UL/CSA/PSE 60950-1 |
