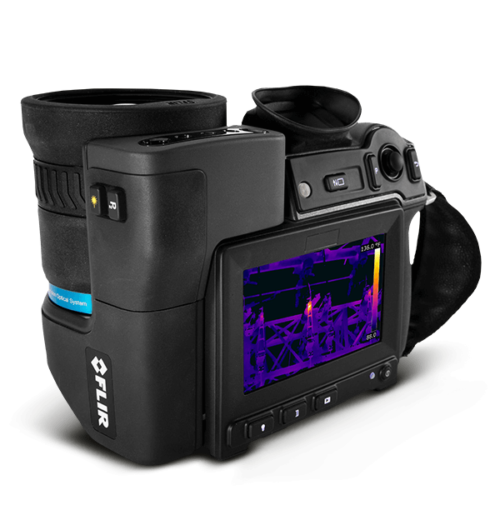

Get ready for outstanding thermal imaging performance, built on 50 years of experience. With its remarkable range, up to 3.1 M resolution (UltraMax®), and customization to fit your needs, the FLIR T1K (T1040) distributed by Agile Microsys is designed to be the ultimate tool to streamline your workday and make you the hero. For sharpest images, accurate temperatures, and maximum flexibility — the T1K is the pinnacle of five decades of infrared expertise. The purchase of a T1040 camera includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator, available through Agile Microsys.
Exceptional Measurement Performance
The FLIR OSX™ Precision HDIR optical system, available through Agile Microsys, offers continuous autofocus and crisp resolution for accurate measurements, even from a distance. This advanced optical system ensures precise thermal data capture, enhancing efficiency and reliability in various applications.
Compact and Easy to Use
The FLIR T1K, offered by Agile Microsys, features a 120° rotating optical block and a bright, high-resolution LCD viewfinder, allowing users to comfortably view any target. This design enhances usability and ensures that even challenging angles are easily accessible, streamlining your thermal imaging tasks.
Expert Features
Category | Specification |
---|---|
IR Resolution | 1024 × 768; up to 3.1 MP with UltraMax |
Thermal Sensitivity/NETD | <20 mK @ +30°C (+86°F) |
Digital Camera | Field of view adapts to the infrared lens |
Image Modes | Thermal, thermal MSX, picture in picture, digital camera |
Display | Built-in touch screen, 4.3 in. wide screen LCD, 800 × 480 pixels |
Storage Media | Removable media SD or SDHC card. Class 10 or better recommended |
4.3” Display | 800 x 480 pixels |
Auto Orientation | Automatic landscape or portrait |
Automatic Image Adjustment | Standard or histogram based on the image content |
Built-in Digital Camera | 5 Mpixel with LED light |
Camera Size (excl. lens) | 167.2 mm × 204.5 mm × 188.3 mm (6.6 in. × 8.0 in. × 7.4 in.) |
Camera Software Update | Using USB cable or SD card |
Color Palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
Detector Pitch | 17 µm |
Detector Type | Focal plane array (FPA), uncooled microbolometer |
Digital Image Enhancement | Adaptive digital noise reduction |
Digital Zoom | 1–8× continuous |
Display Type | Capacitive touch screen |
Field of View | 12° × 9° |
FLIR Screen-EST Mode | Yes |
f-number | 1.2 |
Focal Length | 83.4 mm (3.28 in.) |
Focus | One shot or manual |
Gallery | Review thumbnail/full image on the camera. Edit measurements/palettes/image modes on the camera |
Image Description | Add short note (stored in the JPEG exif tag) |
Image Frequency | 30 Hz |
Infrared Image | Full color infrared image |
Laser | Activated by a dedicated button |
Laser Alignment | Position is automatically displayed on the infrared image |
Manual Image Adjustment | Linear based, possible to adjust level/span/max./min. |
Minimum Focus Distance | 1.3 m (4.26 ft.) |
Multi Spectral Dynamic Imaging (MSX) | Thermal image with enhanced detail presentation |
Non-Radiometric IR Video | H.264 to memory card |
Radiometric IR Video | Real-time radiometric recording (RTRR) to memory card |
Picture-in-Picture | Resizable and movable infrared area on the visual image |
Sketch | Draw on the thermal/digital image or add predefined stamps. Separate PC software for extensive report generation |
Spatial Resolution (IFOV) | 0.20 mrad |
Spectral Range | 7.5 – 14 µm |
UltraMax | Yes |
Video Lamp | Built-in LED light |
Viewfinder | Built-in 800 × 480 pixels |
Visual Image | Full color visual image |
Visual Video Recording | H.264 to the memory card |
Measurement & Analysis | |
Accuracy [Drift] in Screen-EST Mode | Accuracy (drift): ±0.3°C (±0.5°F) |
Area Measurement | 5 + 5 areas (boxes and circles) with max./min./average |
Atmospheric Transmission Correction | Automatic, based on distance, atmospheric temperature, and relative humidity |
Color Alarm (Isotherm) | Above/below/interval |
Difference Temperature | Delta temperature between the measurement functions and the reference temperature |
Emissivity Correction | Variable from 0.01 to 1.0 or selected from the materials list |
Measurement Corrections | Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external infrared window compensation |
Measurement Function Alarm | Audible/visual alarms (above/below) on any selected measurement function |
Object Temperature Range | -40°C to 2000°C (-40°F to 3632°F) |
Optics Transmission Correction | Automatic, based on signals from internal sensors |
Profile | 1 line profile with max./min. temperature |
Reflected Apparent Temperature Correction | Automatic, based on the input of the reflected temperature |
Sampling Average in Screen-EST Mode | Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature |
User Presets | The user can select and combine measurements from any number of spots/boxes/circles/profiles/delta |
User Interface | |
Languages | Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Swedish, traditional Chinese, Turkish |
Text | Add table, select between predefined templates |
Touch Screen | Yes |
Voice Recording | 60 seconds (via Bluetooth) stored with the image |
Power | |
Battery Operating Time | >2.5 hours at 25°C (+68°F) and typical use |
Battery Type | Rechargeable Li-ion battery |
Charging System | In-camera (AC adapter or 12 V from a vehicle) or two-bay charger |
Charging Temperature | 0°C to 45°C (32°F to 113°F), except for the Korean market: 10°C to 45°C (50°F to 113°F) |
Charging Time | 2.5 hours to 90% capacity, charging status indicated by LEDs |
External Power Operation | AC adapter 90–260 V AC, 50/60 Hz or 12 V from a vehicle (cable with a standard plug, optional) |
Power Management | Automatic power-off functionality, user configurable between 5 minutes, 20 minutes, and no automatic shutdown |
Environmental & Certifications | |
EMC | ETSI EN 301 489-1 (radio) ETSI EN 301 489-17 EN 61000-6-2 (Immunity) EN 61000-6-3 (Emission) FCC 47 CFR Part 15 Class B (Emission) ICES-003 |
Encapsulation | IP 54 (IEC 60529) |
Humidity (Operating and Storage) | IEC 60068-2-30 / 24 hours, 95% relative humidity, 25–40°C (77–104°F) / 2 cycles |
Laser Classification | Class 2 |
Laser Type | Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red) |
Operating Temperature Range | -15°C to 50°C (5°F to 122°F) |
Radio Spectrum | ETSI EN 300 328 FCC Part 15.247 RSS-247 Issue 2 |
Safety | EN/UL/CSA/PSE 60950-1 |
Shock | 25 g (IEC 60068-2-29) |
Storage Temperature Range | –40 to +70°C (–40 to +158°F) |
Tripod Mounting | UNC ¼”-20 |
Vibration | 2 g (IEC 60068-2-6) |
General | |
Box Contents | Infrared camera with lens, Battery (2 each), Battery charger, HDMI-HDMI cable, Hard transport case, Large eyecup, Lens cap, Neck strap, Power supply (including multi-plugs), USB cable (Standard A to Micro-B), Calibration certificate, FLIR Tools+ license card, User documentation (CD-ROM), Printed documentation, Bluetooth headset, SD card |
Compass | Camera direction automatically added to every image |
Housing Material | Magnesium |
Weight | 1.9 kg (4.3 lb.) |
