Compatible with the New iPhone 15

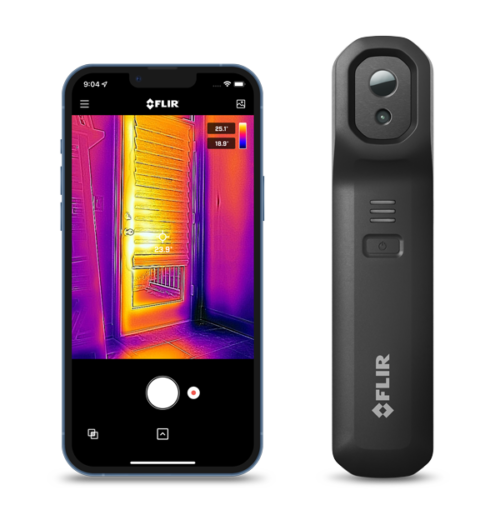

The FLIR ONE Edge, offered by Agile Microsys, is a rugged and innovative thermal imager that enables easy inspection of hard-to-reach areas from any position or angle. This advanced thermal camera connects wirelessly, allowing you to examine out-of-view targets or conveniently clip it to your phone or tablet for seamless one-handed operation.
Equipped with FLIR MSX® technology, the FLIR ONE Edge captures detailed thermal images, helping you clearly identify problem areas. The FLIR ONE app provides valuable guidance for troubleshooting and verifying repairs across a variety of applications, including home, automotive, commercial electrical, and mechanical inspections.
The wireless connectivity ensures compatibility with both Android and iOS devices, facilitating easy tool sharing among team members. All thermal images and videos are saved directly to your mobile device for convenient access. By connecting to FLIR Ignite™, you can instantly upload files to the cloud, enabling you to create reports and efficiently organize, store, and share data for a streamlined workflow.
Request Info
Easily Inspect Anywhere
Easily scan targets that are out of reach or out of view with the FLIR ONE Edge from Agile Microsys. Enjoy a comfortable viewing experience directly from your mobile device, or clip the FLIR ONE Edge onto your smart device for natural one-handed operation. This innovative design enhances your ability to capture vital thermal images effortlessly, making inspections more convenient and efficient.
Identify Problems Fast
With the FLIR ONE Edge from Agile Microsys, you can swiftly detect and pinpoint problem areas using FLIR MSX (Multi-Spectral Dynamic Imaging) technology. This advanced feature enhances your ability to recognize issues quickly, allowing for efficient inspections and timely resolutions.
Rugged and Ready
The FLIR ONE Edge, available through Agile Microsys, boasts a robust design tailored for demanding environments. With a battery life of up to 2.5 hours and fast-charging capabilities, this thermal camera is always prepared for action. It is IP54 rated for dust and water resistance and has been drop-tested from a height of 2 meters, ensuring durability and reliability when you need it most.
| Feature | Specification |
|---|---|
| Thermal Resolution | 80 × 60 (4,800 pixels) |
| Battery Life | Approximately 2 hours 30 minutes |
| Object Temperature Range | -20°C to 120°C (-4°F to 248°F) |
| Accuracy | ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F) |
| Operating Temperature | -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F) |
| Spot Meter | Hottest, Coldest, and 3 spot measurement |
| Imaging & Optical | |
| Adjustable MSX Distance | 30 cm – Infinity |
| Focus | Fixed 30 cm – Infinity |
| Frame Rate | 8.7 Hz |
| HFOV/VFOV | 54° ±1° / 42° ±1° |
| Image Modes | MSX, Infrared, Visual |
| Palette | Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava, and Color Wheel |
| Shutter | Automatic/Manual |
| Thermal Sensitivity/NETD | 70 mK |
| Thermal Sensor | Pixel size 12 µm, 8 to 14 µm spectral range |
| Visual Resolution | 640 × 480 |
| VividIR | No |
| Power | |
| Battery Charge Time | 60–90 min for fully charged |
| 15 min Charging | 15 min charging from empty battery gives 40 min operating time |
| Charging Method | Female USB-C (5V/1A) |
| Measurement & Analysis | |
| Accuracy | ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F) |
| Measurement Corrections | Emissivity; Reflected apparent temperature (22°C / 72°F) |
| Spot Meter | Hottest, Coldest, and 3 spot measurement |
| General | |
| Additional Integrations | Available via device App Store. Development SDK available: FLIR SDK |
| Battery Charge Monitor | 0 to 100% |
| Clip Span | 130 mm (min) / 195 mm (max) |
| Compatible with FLIR Software | FLIR ONE app, FLIR Ignite, FLIR Thermal Studio |
| Device Compatibility | iOS (version 15 and later) or Android (version 11 and later) smartphones and tablets |
| Dimensions (H x W x D) | 37.5 mm × 35 mm × 149 mm (1.5 in × 1.4 in × 5.9 in) |
| Remote Operation | Up to 5 m (16.4 ft) from smart device |
| Weight | 153 g (5.4 oz) |
| Environmental & Certifications | |
| Certifications | RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU |
| Drop Test | Drop from 2 m (6.56 ft) |
| Emissivity Settings | Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30% |
| IP Rating | IP54 |
| Non-Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Temperature | -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F) |
| Communication & Data Storage | |
| Bluetooth | Uses Bluetooth to set up the peer-to-peer Wi-Fi network that the camera creates to connect to the mobile device |
| Capture Modes | Video, Still image |
| Charging | Female USB-C (5V/1A) |
| File Formats | Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android)) |
| WiFi | 802.11 a/b/g/n |
