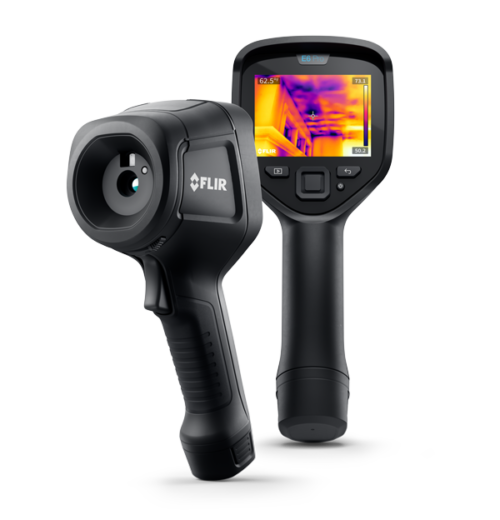

The FLIR E6 Pro, offered by Agile Microsys, is a high-performance thermal imaging camera perfect for precise diagnostics in electrical, mechanical, and building inspections. It boasts a 240 x 180 IR resolution and a broad temperature range from -20°C to 550°C, capturing clear, detailed images enhanced by FLIR’s MSX® technology. With Wi-Fi connectivity for easy data transfer via the FLIR Tools® app and IP54-rated durability, the E6 Pro is a robust tool for professionals in demanding environments.
Request Info
SIMPLE, INTUITIVE CONTROLS
Automatic and focus-free, with clear on-screen navigation to measurement tools and settings
SHARE IMAGES AND FINDINGS EASILY
Download standard JPEGS, create reports and share what you’ve found via a Wi-Fi connection to the FLIR Tools Mobile app
BUILT FOR YOUR TOUGH WORK ENVIRONMENT
Lightweight and well-balanced, the E6-XT has an IP54 enclosure and easily withstands a 2-meter drop test
OVERVIEW
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) |
| Detector Type | Uncooled microbolometer |
| Field of view (FOV) |
|
| IR Resolution | 240 × 180 pixels |
| List of Contents | •Infrared camera •Hard transport case •Battery (inside the camera) •USB cable •Power supply/charger with EU, UK, US, and Australian plugs •Printed documentation |
| Imaging (MSX) | IR image enhanced with visible camera detail |
| Object Temperature Range | –20°C to 550°C (-4°F to 1022°F) in two ranges |
| Packaging Size | 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in) |
| Thermal Sensitivity/NETD | <0.06°C (0.11°F) / <60 mK |
| FLIR Screen-EST Mode | No |
COMPLIANCE & CERTIFICATIONS
| Certifications | UL, CSA, CE, PSE, and CCC |
CONNECTIONS & COMMUNICATIONS
| AC Operation |
|
| Interface |
|
| WiFi | •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm |
ENVIRONMENTAL
| EMC | •WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B |
| Humidity (Operating and Storage) | IEC 60068-2-30/24 h 95% relative humidity |
| Operating Temperature Range |
|
| Radio Spectrum | •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | –40°C to 70°C (–40°F to 158°F) |
| Emissivity table/correction |
|
| Encapsulation/Drop | IP 54 (IEC 60529)/2m (6.6 ft.) |
IMAGING & OPTICAL
| Color | Black and gray |
| Color palettes |
|
| f-number |
|
| Focus | Focus free |
| Image Adjustment | Automatic adjust/lock image |
| Image Frequency |
|
| Image Modes | Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera. |
| Minimum Focus Distance | 0.5 m (1.6 ft.) |
| Picture-in-Picture |
|
| Spatial resolution (IFOV) | 3.4 mrad |
| Spectral Range | 7.5–13 µm |
| Digital Camera Resolution/FOV | 640 × 480/55° × 43° |
MEASUREMENT & ANALYSIS
| Isotherm |
|
| Reflected apparent temperature correction |
|
| Set-up Commands | Local adaptation of units, language, date and time formats |
| Spot Meter | Center spot; box with min./max |
| Spotmeter and Area | Center spot; box with min./max. |
METER DATA
| Camera size (L x W x H) | 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in) |
| Camera weight incl battery |
|
| Display |
|
POWER
| Charging system | Battery is charged inside the camera or in the specific charger |
| Charging Time | 2.5 hours to 90% capacity in camera. 2 hours in charger |
| Power Management |
|
| Battery type & operating time | Rechargeable 3.6 V Li-ion battery; approx. 4 hours typical use |
STORAGE MEDIA
| File Formats | Standard JPEG, 14-bit measurement data included |
