Pro-Series Infrared Camera with Ignite™ Cloud

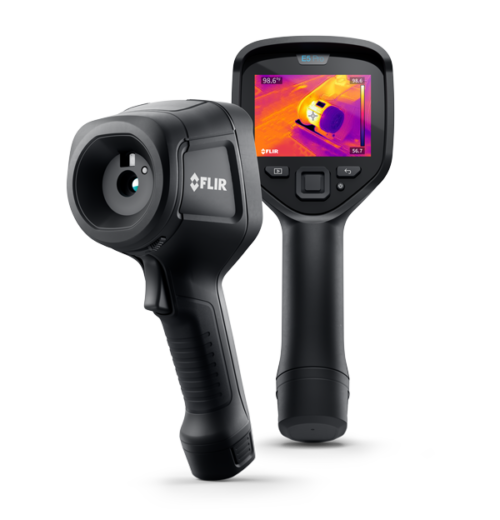

FLIR E5 Pro

The FLIR E5 Pro, distributed by Agile Microsys, is a rugged point-and-shoot thermal camera designed to enhance efficiency in building surveys, HVAC, automotive, and general electrical and mechanical inspections. With a thermal resolution of 160 × 120 pixels (19,200 pixels) and vibrant imagery enhanced by FLIR’s patented MSX® (Multi-Spectral Dynamic Imaging), the E5 Pro allows you to quickly locate and diagnose problems.

Its 3.5-inch, 640 × 480 touchscreen simplifies your workflow, enabling easy editing and organization of photos. You can add detailed notes and upload files directly from the camera to the FLIR Ignite cloud for convenient access across devices. Share images with clients and create quick reports in FLIR Ignite, or develop advanced reports using FLIR Thermal Studio.

Request Info

Inspect Efficiently

With the FLIR E5 Pro, distributed by Agile Microsys, you can easily edit and organize your photos, add detailed notes, and upload files directly from the camera to the FLIR Ignite cloud. This ensures convenient access from any device.

Identify Problems Fast

The FLIR E5 Pro, offered by Agile Microsys, utilizes FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement to deliver highly detailed thermal images, enabling you to quickly pinpoint problem areas.

Hassle-Free Sharing and Reporting

With the FLIR E5 Pro from Agile Microsys, you can instantly share images and create quick reports in FLIR Ignite. For more comprehensive client reports, utilize FLIR Thermal Studio for advanced reporting features.

Specifications Details
IR Resolution 160 × 120 (19,200 pixels)
Thermal Sensitivity/NETD <0.06°C (0.11°F) / <60 mK at 30°C (86°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Field of View (FOV) 33° × 25°
Digital Camera 5 MP
Image Modes Thermal MSX, Thermal, Picture-in-Picture, Digital camera
Display 3.5 in. 640 × 480 color LCD
Storage Media Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
Color Palettes Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC
Detector Type Uncooled microbolometer
f-number 1.4
Focus Focus free
Gallery Thumbnails and custom folder structure
Image Frequency 9 Hz
Minimum Focus Distance 0.36 m (1.18 ft)
Picture-in-Picture IR area on visual image
Spatial Resolution (IFOV) 3.7 mrad
Spectral Range 7.5 µm to 13 µm
Camera Size (L x W x H) 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)
Camera Weight (incl. battery) 0.590 kg (1.30 lb)
Delta T Yes, NFPA 70B compliant
Isotherm Above alarm, below alarm
Measurements Correction Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
Object Temperature Range -20°C to 400°C (-4°F to 752°F) in two ranges
Spot Meter Center spot; box with min./max.
Text Annotation Text annotation on image using onscreen keyboard
Touchscreen Capacitive touch
Battery Operating Time 4 hours
Battery Type Rechargeable Lithium-ion battery
Charging System Battery is charged inside the camera or in specific charger
Charging Time 2 hours
Power Management Automatic shut-down
Certifications UL, CSA, CE, PSE and CCC, WEEE 2012/19/EC, RoHS 2011/65/EC
Drop Test 2 m (6.6 ft)
EMC EN 301 489-1, EN 301 489-17, EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B
Encapsulation IP54 (IEC 60529)
Humidity (Operating and Storage) IEC 60068-2-30/24 h 95% relative humidity
Operating Temperature Range -15°C to 50°C (5°F to 122°F)
Shock 25 g (IEC 60068-2-27)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Vibration 2 g (IEC 60068-2-6)
Flashlight Bright LED
List of Contents Infrared camera, hard transport case, battery (inside camera), power supply (with EU, UK, US and AU plugs), FLIR Thermal Studio Starter, and printed documentation
Packaging Size 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)

COMPLIANCE & CERTIFICATIONS

Certifications UL, CSA, CE, PSE, and CCC

CONNECTIONS & COMMUNICATIONS

AC Operation
AC adapter, 90–260 VAC input, 5 VDC output to the camera
Interface
USB Micro: Data transfer to and from PC and Mac device
WiFi •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm

ENVIRONMENTAL

EMC •WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B
Humidity (Operating and Storage) IEC 60068-2-30/24 h 95% relative humidity
Operating Temperature Range
–15°C to 50°C (+5°F to 122°F)
Radio Spectrum •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm
Shock 25 g (IEC 60068-2-27)
Storage Temperature Range –40°C to 70°C (–40°F to 158°F)
Emissivity table/correction
Emissivity table of predefined materials/variable from 0.1 to 1.0
Encapsulation/Drop IP 54 (IEC 60529)/2m (6.6 ft.)

IMAGING & OPTICAL

Color Black and gray
Color palettes
Black & white, iron, and rainbow
f-number
1.5
Focus Focus free
Image Adjustment Automatic adjust/lock image
Image Frequency
9 Hz
Image Modes Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
Minimum Focus Distance 0.5 m (1.6 ft.)
Picture-in-Picture
IR area on the visual image
Spatial resolution (IFOV) 3.4 mrad
Spectral Range 7.5–13 µm
Digital Camera Resolution/FOV 640 × 480/55° × 43°

MEASUREMENT & ANALYSIS

Isotherm
Above alarm, below alarm
Reflected apparent temperature correction
Automatic, based on the input of reflected temperature
Set-up Commands Local adaptation of units, language, date and time formats
Spot Meter Center spot; box with min./max
Spotmeter and Area Center spot; box with min./max.

METER DATA

Camera size (L x W x H) 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)
Camera weight incl battery
0.575 kg (1.27 lb.)
Display
3.0 in. 320 × 240 color LCD

POWER

Charging system Battery is charged inside the camera or in the specific charger
Charging Time 2.5 hours to 90% capacity in camera. 2 hours in charger
Power Management
Automatic shut-down
Battery type & operating time Rechargeable 3.6 V Li-ion battery; approx. 4 hours typical use

STORAGE MEDIA

File Formats Standard JPEG, 14-bit measurement data included
