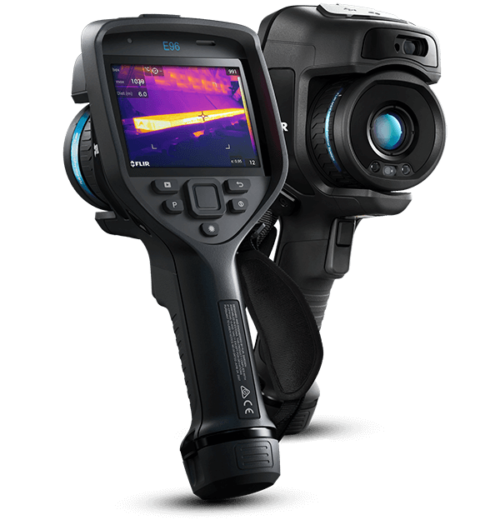

The FLIR E96, distributed by Agile Microsys as an authorized channel partner, is our first pistol-grip camera featuring a 640 × 480 thermal resolution, enabling inspectors to survey high-voltage, hazardous targets safely and diagnose electrical and mechanical failures efficiently. The FLIR E96 provides comprehensive coverage of near and distant targets through various lens options. When paired with the FLIR FlexView™ dual field-of-view lens, users can seamlessly switch from wide-area to telephoto scanning at the push of a button. The onboard FLIR Inspection Route allows inspectors to follow pre-planned routes, ensuring organization while surveying large or multiple locations. Additionally, FLIR Ignite enables automatic uploading of E96 images directly from the camera to the cloud for easy and secure storage and sharing.
Outstanding Thermal Imagery
The FLIR E96, available through Agile Microsys, offers a 640 × 480 thermal resolution combined with FLIR UltraMax® and MSX® image enhancement, ensuring it produces the most vibrant and easy-to-interpret images in its class.
Intelligent AutoCal™ Optics
The FLIR E96, offered by Agile Microsys, features interchangeable, auto-calibrating lenses ranging from telephoto to wide-angle. These lenses enable users to safely target electrical hot spots, inspect for mechanical faults, and efficiently survey roofs or building envelopes.
Streamlined Reporting
Specification | Details |
---|---|
IR Resolution | 640 × 480 pixels |
Thermal Sensitivity/NETD | <40 mK, 24° at 30°C (86°F) <50 mK, 14° at 30°C (86°F) |
Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
Digital Camera | 5 MP, with built-in LED photo/video lamp |
Display | 4″, 640 × 480 pixel touchscreen LCD with auto-rotation |
Storage Media | Removable SD card |
Imaging & Optical | |
---|---|
Color Palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
Detector Type and Pitch | Uncooled microbolometer, 12 µm |
Digital Zoom | 1-8× continuous |
Field of View | 24° × 18°, 14° × 10° |
f-number | 24°: 1.3 14°: 1.3 |
Focal Length | 24°: 17 mm (0.67 in) 14°: 29 mm (1.41 in) |
Focus | Continuous LDM, One-shot LDM, One-shot contrast, Manual |
Image Frequency | 30 Hz |
Lens Identification | Automatic |
Minimum Focus Distance | 24°: 0.18 m (0.59 ft) 14°: 1.0 m (3.28 ft) |
Minimum Focus Distance with MSX | 24°: 0.5 m (1.64 ft) 14°: 1.0 m (3.28 ft) |
Non-radiometric IR Video Streaming | H.264 or MPEG-4 over Wi-Fi, MJPEG over UVC or Wi-Fi |
Picture-in-Picture | Resizable and movable |
Radiometric IR Video Recording | Real-time radiometric recording (.csq) |
Radiometric IR Video Streaming | Yes, over UVC |
Spatial Resolution (IFOV) | 24°: 0.67 mrad/pixel 14°: 0.38 mrad/pixel |
Spectral Range | 7.5-14 µm |
UltraMax | Yes |
Viewfinder | No |
Measurement & Analysis | |
---|---|
Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
Object Temperature Range | -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F) |
Spot Meter | 3 ea. in live mode |
User Interface | |
---|---|
Display | 4″, 640 × 480 pixel touchscreen LCD with auto-rotation |
Text | Predefined list or touchscreen keyboard |
Voice | 60 sec. recording added to still images or video via built-in mic (with speaker) or via Bluetooth® |
Power | |
---|---|
Battery Operating Time | >2.5 hours at 25°C (68°F) under typical use |
Battery Type | Rechargeable Li-ion battery |
Environmental & Certifications | |
---|---|
Operating Temperature Range | -15 to 50°C (5 to 122°F) |
Safety | EN/UL/CSA/PSE 60950-1 |
Storage Temperature Range | -40 to 70°C (-40 to 158°F) |
General | |
---|---|
FLIR Inspection Route | Enabled in camera |
Laser Pointer | Yes |
Packaging Includes | Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Starter |
