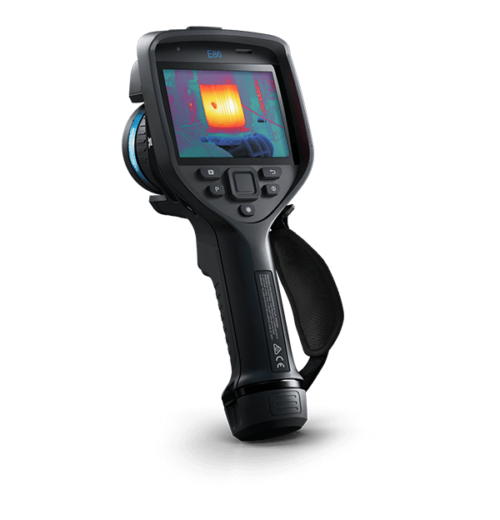

The FLIR E86, distributed by Agile Microsys, is equipped with high-performance features essential for fast, accurate thermal detection. When paired with the FLIR FlexView™ dual field-of-view lens, users can instantly switch between wide-area and telephoto scanning for efficient inspections. With a 464 × 348 pixel thermal resolution, this camera offers an expanded temperature measurement range, making it easier to detect hot spots and hidden anomalies in electrical and mechanical assets.
For comprehensive coverage of both near and distant targets, the E86 features interchangeable AutoCal™ lenses. Enhanced with FLIR’s imaging technologies like UltraMax® and MSX®, it delivers crisp, vibrant thermal images, improving detection and diagnosis.
Additionally, the onboard FLIR Inspection Route allows users to follow pre-planned routes, keeping their work organized during surveys of large or multiple locations. The E86 integrates with FLIR Ignite, enabling automatic uploads of images directly from the camera to the cloud, ensuring secure and convenient storage and sharing.
Request Info
Laser Distance Measurement
The laser distance meter enables fast, precise autofocus and provides data for on-screen area measurements (m² or ft²).
Intelligent AutoCal™ Optics
Interchangeable, auto-calibrating lenses, ranging from telephoto to wide-angle, enable users to safely identify electrical hot spots, inspect for mechanical faults, and survey roofs or building envelopes efficiently.
Streamlined Reporting
| Specification | Details |
|---|---|
| IR Resolution | 464 × 348 pixels |
| Thermal Sensitivity/NETD | <40 mK, 24° at 30°C (86°F); <50 mK, 14° at 30°C (86°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Digital Camera | 5 MP, with built-in LED photo/video lamp |
| Display | 4″, 640 × 480 pixel touchscreen LCD with auto-rotation |
| Storage Media | Removable SD card |
| Imaging & Optical | |
| Color Palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| Detector Type and Pitch | Uncooled microbolometer, 17 µm |
| Digital Zoom | 1-4× continuous |
| Field of View | 24° × 18°, 14° × 10° |
| f-number | 24°: 1.3; 14°: 1.3 |
| Focal Length | 24°: 17 mm (0.67 in); 14°: 29 mm (1.41 in) |
| Focus | Continuous LDM, One-shot LDM, One-shot contrast, Manual |
| Image Frequency | 30 Hz |
| Lens Identification | Automatic |
| Minimum Focus Distance | 24°: 0.18 m (0.59 ft); 14°: 1.0 m (3.28 ft) |
| Minimum Focus Distance with MSX | 24°: 0.5 m (1.64 ft); 14°: 1.0 m (3.28 ft) |
| Non-radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi, MJPEG over UVC or Wi-Fi |
| Picture-in-Picture | Resizable and movable |
| Radiometric IR video recording | Real-time radiometric recording (.csq) |
| Radiometric IR video streaming | Yes, over UVC |
| Spatial resolution (IFOV) | 24°: 0.92 mrad/pixel; 14°: 0.52 mrad/pixel |
| Spectral Range | 7.5-14 µm |
| Measurement & Analysis | |
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
| Object Temperature Range | -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F) |
| Spot Meter | 3 ea. in live mode |
| User Interface | |
| Display | 4″, 640 × 480 pixel touchscreen LCD with auto-rotation |
| Text | Predefined list or touchscreen keyboard |
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth® |
| Power | |
| Battery operating time | >2.5 hours at 25°C (68°F) and typical use |
| Battery type | Rechargeable Li-ion battery |
| Environmental & Certifications | |
| Operating Temperature Range | -15 to 50°C (5 to 122°F) |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Storage Temperature Range | -40 to 70°C (-40 to 158°F) |
| General | |
| FLIR Inspection Route | Enabled in camera |
| Laser Pointer | Yes |
| Packaging | Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Starter |
