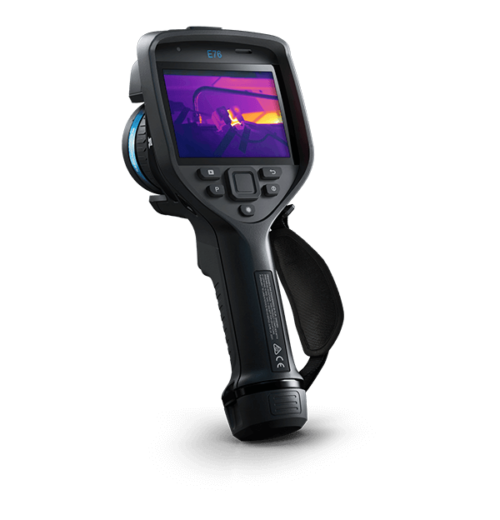

The FLIR E76 offers complete coverage of near and distant targets through a range of lens options. Pair the E76 with a FLIR FlexView™ dual field of view lens to instantly switch from wide-area to telephoto scanning with just one push of a button. A step up from the FLIR E54, the E76 includes laser-assisted autofocus and three area measurement boxes. With a thermal resolution of 320 × 240, it produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX® technology for added detail and perspective. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. Agile Microsys ensures that you benefit from automatic uploading of E76 images directly from the camera to the cloud with FLIR Ignite for easy, secure storage and sharing.
Request Info
Interchangeable, Auto-calibrating Lenses
Telephoto, standard, and wide-angle AutoCal™ lenses enable users to survey large targets quickly, check machines for signs of failure, or inspect electrical systems safely. With the flexibility of interchangeable lenses, Agile Microsys ensures that you have the right tool for any inspection job, enhancing both efficiency and accuracy in your thermal imaging tasks.
Improved Contrast for Faster Diagnosis
Utilize FLIR 1-Touch Level/Span to instantly enhance image contrast, allowing Agile Microsys users to quickly identify and highlight potential electrical or mechanical issues. This feature streamlines the diagnostic process, making it easier to recognize problems and take corrective action promptly.
Streamlined Reporting
With onboard integration to FLIR routing software*, Agile Microsys ensures automatic image uploads directly to the FLIR Ignite cloud library. The built-in microphone allows for convenient voice annotations, while advanced report generation features facilitate a more efficient workflow. (*Optional accessory software)
| Category | Specification |
|---|---|
| IR Resolution | 320 × 240 pixels |
| Thermal Sensitivity/NETD | <40 mK, 24° at 30°C (86°F); <50 mK, 14° at 30°C (86°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Digital Camera | 5 MP, with built-in LED photo/video lamp |
| Display | 4″, 640 × 480 pixel touchscreen LCD with auto-rotation |
| Storage Media | Removable SD card |
Imaging & Optical
| Category | Specification |
|---|---|
| Color Palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| Detector Type and Pitch | Uncooled microbolometer, 17 µm |
| Digital Zoom | 1-4x continuous |
| Field of View | 24° × 18°, 14° × 10° |
| f-number | 24°: 1.5, 14°: 1.5 |
| Focal Length | 24°: 17 mm, 14°: 29 mm |
| Focus | Continuous LDM, One-shot LDM, One-shot contrast, Manual |
| Image Frequency | 30 Hz |
| Lens Identification | Automatic |
| Minimum Focus Distance | 24°: 0.18 m, 14°: 1.0 m |
| Minimum Focus Distance with MSX | 24°: 0.5 m, 14°: 1.0 m |
Video & Streaming
| Category | Specification |
|---|---|
| Non-radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi, MJPEG over UVC or Wi-Fi |
| Picture-in-Picture | Resizable and movable |
| Radiometric IR video recording | Real-time radiometric recording (.csq) |
| Radiometric IR video streaming | Yes, over UVC |
| Spatial resolution (IFOV) | 24°: 1.33 mrad/pixel, 14°: 0.75 mrad/pixel |
Measurement & Analysis
| Category | Specification |
|---|---|
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
| Object Temperature Range | -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F) |
| Spot Meter | 3 ea. in live mode |
Power
| Category | Specification |
|---|---|
| Battery Operating Time | >2.5 hours at 25°C (68°F) and typical use |
| Battery Type | Rechargeable Li-ion battery |
Environmental & Certifications
| Category | Specification |
|---|---|
| Operating Temperature Range | -15 to 50°C (5 to 122°F) |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Storage Temperature Range | -40 to 70°C (-40 to 158°F) |
General
| Category | Specification |
|---|---|
| FLIR Inspection Route | Enabled in camera |
| Laser Pointer | Yes |
| Packaging | Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Starter |
