Advanced Thermal Imaging Camera

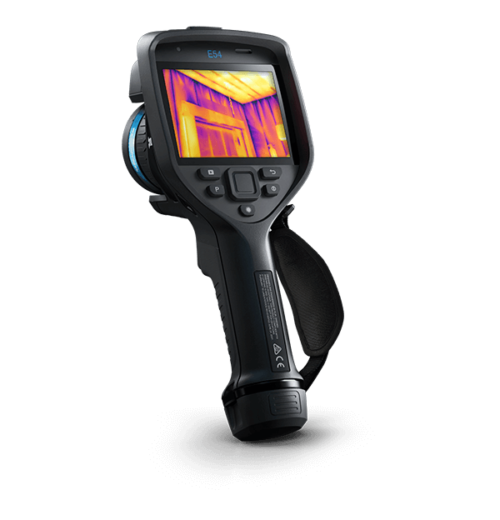

FLIR E54

The FLIR E54, distributed by Agile Microsys, delivers the resolution and sensitivity required for basic condition monitoring, electrical/mechanical inspections, and building diagnostics. With its 320 × 240 pixel thermal detector, the E54 can accurately measure temperatures up to 650°C (1202°F). It produces crisp, vibrant thermal imagery, which is further enhanced by patented FLIR MSX® technology to provide additional detail and perspective.

For professionals handling large or multiple locations, the onboard FLIR Inspection Route allows you to run pre-planned survey routes, helping you stay organized and efficient. Additionally, the FLIR Ignite platform automatically uploads E54 images directly from the camera to the cloud, ensuring secure and easy storage and sharing.

Agile Microsys is proud to bring you the FLIR E54 for precise and reliable thermal inspections.

Request Info

Improved Contrast for Faster Troubleshooting

Agile Microsys brings you the FLIR E54, equipped with FLIR’s 1-Touch Level/Span feature, allowing users to instantly improve image contrast. This feature helps you quickly highlight potential electrical or mechanical issues, making troubleshooting faster and more efficient.

Improved Contrast for Faster Diagnosis

The FLIR E54, available through Agile Microsys, measures temperatures up to 650°C (1202°F), providing accurate diagnostics for your inspection needs. It offers 3 spotmeters and displays the maximum and minimum temperatures within an area live, on-screen, helping you quickly assess potential problems.

Streamlined Reporting

The FLIR E54, distributed by Agile Microsys, integrates with FLIR routing software* for efficient workflow management. With automatic image uploads to the FLIR Ignite cloud, a built-in microphone for voice annotation, and comprehensive report generation features, the E54 ensures that your workday is streamlined and organized. (*Optional accessory software)

Specification Details
IR Resolution 320 × 240 pixels
Thermal Sensitivity/NETD <40 mK at 30°C (86°F)
Accuracy ±2°C (±3.6°F) or ±2% of the reading
Digital Camera 5 MP, with built-in LED photo/video lamp
Display 4″, 640 × 480 pixel touchscreen LCD with auto-rotation
Storage Media Removable SD card
Color Palettes Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Detector Type and Pitch Uncooled microbolometer, 17 µm
Digital Zoom 1-4× continuous
f-number 1.3
Focus Manual
Image Frequency 30 Hz
Lens Identification NA
Minimum Focus Distance 0.15 m
Non-radiometric IR Video Streaming H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
Picture-in-Picture Centered infrared area on the visual image
Radiometric IR Video Recording Real-time radiometric recording (.csq)
Radiometric IR Video Streaming Yes, over UVC
Spectral Range 7.5-14 µm
UltraMax No
Viewfinder No
Measurement & Analysis
Measurement Presets No measurements, Center spot, Hot spot, Cold spot, 3 spots, Hot spot–Spot
Object Temperature Range -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F)
Spot Meter 3 ea. in live mode
User Interface
Display 4″, 640 × 480 pixel touchscreen LCD with auto-rotation
Text Predefined list or touchscreen keyboard
Voice 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®
Power
Battery Operating Time > 2.5 hours at 25°C (68°F) and typical use
Battery Type Rechargeable Li-ion battery
Environmental & Certifications
Operating Temperature Range -15 to 50°C (5 to 122°F)
Safety EN/UL/CSA/PSE 60950-1
Storage Temperature Range -40 to 70°C (-40 to 158°F)
General
FLIR Inspection Route Enabled in camera
Laser Pointer Yes
Packaging Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)
