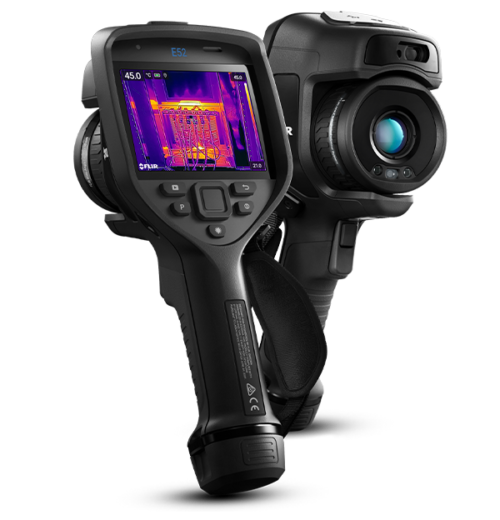

The FLIR E52, offered by Agile Microsys, is your entry into the Exx-Series, providing the resolution and sensitivity needed for basic condition monitoring and electrical/mechanical inspections. The 240 × 180 pixel thermal detector accurately measures temperatures up to 550°C (1022°F) and produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX® technology for added detail and perspective. The onboard FLIR Inspection Route runs pre-planned paths to help you stay organized when surveying large or multiple locations. Additionally, FLIR Ignite enables automatic uploading of E52 images directly from the camera to the cloud for easy, secure storage and sharing.
Request Info
Improved Contrast for Faster Troubleshooting
With Agile Microsys, utilize FLIR 1-Touch Level/Span to instantly enhance image contrast, allowing for quicker identification of potential electrical or mechanical issues.
Features to Help with Diagnosis
The Agile Microsys FLIR E52 measures temperatures up to 550°C (1022°F), features three spot meters, and provides real-time display of maximum and minimum temperatures within a selected area on-screen.
Streamlined Reporting
The Agile Microsys FLIR E52 features onboard integration with FLIR routing software*, automatic image uploads directly to the FLIR Ignite cloud library, a built-in microphone for voice annotation, and report generation capabilities, all designed to streamline your workday. (*Optional accessory software)
| Feature | Specification |
|---|---|
| IR Resolution | 240 × 180 pixels |
| Thermal Sensitivity/NETD | <50 mK @ 30°C (86°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Digital Camera | 5 MP, with built-in LED photo/video lamp |
| Display | 4″, 640 × 480 pixel touchscreen LCD with auto-rotation |
| Storage Media | Removable SD card |
| Color Palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| Detector Type and Pitch | Uncooled microbolometer, 17 µm |
| Digital Zoom | 1-4× continuous |
| f-number | 1.3 |
| Focus | Manual |
| Image Frequency | 30 Hz |
| Lens Identification | N/A |
| Minimum Focus Distance | 0.15 m |
| Non-radiometric IR Video Streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
| Picture-in-Picture | Centered infrared area on the visual image |
| Radiometric IR Video Recording | Real-time radiometric recording (.csq) |
| Radiometric IR Video Streaming | Yes, over UVC |
| Spectral Range | 7.5-14 µm |
| UltraMax | No |
| Viewfinder | No |
| Measurement & Analysis | |
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Measurement Presets | No measurements, Center spot, Hot spot, Cold spot, 3 spots, Hot spot–Spot |
| Object Temperature Range | -20°C to 120°C (-4°F to 248°F); 0°C to 550°C (32°F to 1022°F) |
| Spot Meter | 3 ea. in live mode |
| User Interface | |
| Display | 4″, 640 × 480 pixel touchscreen LCD with auto-rotation |
| Text | Predefined list or touchscreen keyboard |
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth® |
| Power | |
| Battery Operating Time | > 2.5 hours at 25°C (68°F) and typical use |
| Battery Type | Rechargeable Li-ion battery |
| Environmental & Certifications | |
| Operating Temperature Range | -15 to 50°C (5 to 122°F) |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Storage Temperature Range | -40 to 70°C (-40 to 158°F) |
| General | |
| FLIR Inspection Route | Enabled in camera |
| Laser Pointer | Yes |
| Packaging | Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription) |
