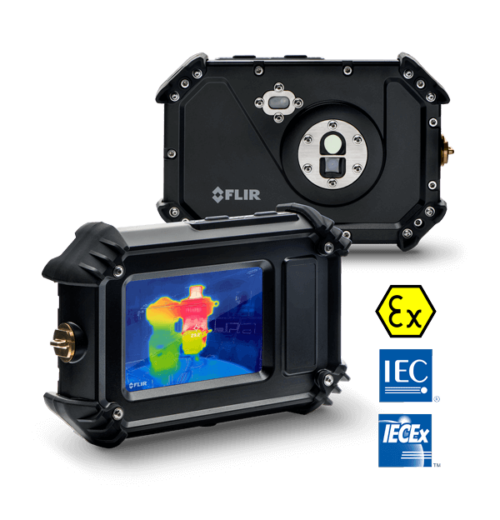

The FLIR Cx5, available at Agile Microsys, is specifically designed for use in hazardous environments, eliminating the need for hot work permits due to the presence of gas, vapor, and dust. This makes it ideal for conducting T-Class surveys with ease and accuracy. Equipped with FLIR MSX® (Multi-Spectral Dynamic Imaging) and 1-Touch Level/Span, the Cx5 quickly identifies potential problems, enhancing plant performance.
With a 160 × 120 thermal resolution, the Cx5 ensures accurate temperature measurement of nearby targets. Its user-friendly 3.5-inch touchscreen interface makes navigation simple. The built-in FLIR Ignite™ cloud service enables direct data transfer, storage, and backup, ensuring your images are securely stored and accessible on all your devices.
The FLIR Cx5 is a must-have tool for mechanical and electrical inspections at your production site, helping you stay ready to detect and resolve issues efficiently.
Request Info
INSPECT SAFELY IN EXPLOSIVE ENVIRONMENTS
With the FLIR Cx5, available through Agile Microsys, you can safely investigate potential problems from a distance. Equipped with FLIR MSX®, 160 × 120 true thermal imaging, and 1-Touch Level/Span, the Cx5 allows you to quickly and accurately assess issues, even in hazardous conditions.
RUGGED, RELIABLE, AND CERTIFIED
The FLIR Cx5, available through Agile Microsys, is built to withstand hazardous environments without the need for hot work permits. Its certification for gas, vapor, and dust protection ensures compliance with restricted breathing and dust protection standards, making it a dependable tool for use in explosive locations.
UPLOAD AND SHARE DATA INSTANTLY
With the FLIR Cx5, wirelessly upload and share data, images, and files to the FLIR Ignite™ cloud. Seamlessly synchronize the camera with FLIR Thermal Studio software for advanced thermography analysis and effortless report generation.
| Feature | Specification |
|---|---|
| Accuracy | 0°C to 100°C: ±5°C (±9°F); 100°C to 400°C: ±5% |
| Digital Camera | 5 MP |
| Image Modes | Infrared, Visual, MSX (embossed visual details), Picture-in-picture |
| Storage Media | Internal memory, FLIR Ignite cloud connectivity (Wi-Fi) |
| Color Palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| FLIR Screen-EST Mode | No |
| Focus | Focus-free |
| Image Frequency | 8.7 Hz |
| Minimum Focus Distance | Thermal: 0.1 m (3.94 in), MSX: 0.3 m (11.8 in) |
| Spectral Range | 8 to 14 µm |
| Camera Size (L x W x H) | 168 mm × 112 mm × 42 mm (6.6 in × 4.4 in × 1.7 in) |
| Measurement Corrections | Emissivity, Reflected apparent temperature, Atmospheric compensation |
| Object Temperature Range | -20°C to 400°C (-4°F to 752°F) |
| Thermal Sensitivity | <70 mK |
| User Interface | Capacitive touchscreen |
| Battery Operating Time | 4 hours |
| Battery Type | Rechargeable built-in Lithium ion battery |
| Charging System | USB-C (1 A) |
| Charging Time | 2 hours |
| External Power Operation | 5 V, USB-C |
| Certifications | EN EIC 60079-0: 2018, IEC 60079-15: 2017, EN EIC 60079-31: 2014, IEC 60079-0: 2017, EN EIC 60079-15: 2019, IEC 60079-31: 2013 |
| Drop Test | 2 m (6.6 ft) |
| Encapsulation | IP54 (IEC 60529) |
| Operating Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Tripod Mounting | UNC ¼”-20 (built-in) |
