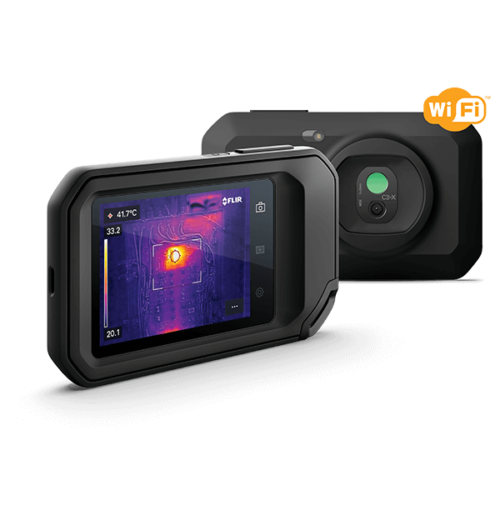

FLIR C3-X: Efficient Problem Detection and Reporting
Available at Agile Microsys, the FLIR C3-X simplifies inspections for hidden problems, allows easy documentation of repairs, and facilitates sharing evidence with customers. Equipped with a 128 × 96 pixel thermal sensor, MSX® (Multi-Spectral Dynamic Imaging), a 5-megapixel visual camera, and a built-in LED flashlight, the C3-X is an affordable yet powerful inspection tool suited for electrical, mechanical, building, and maintenance applications.
With direct upload capabilities to FLIR Ignite™ cloud, users can securely store, organize, and back up files. Whether you’re in the field or in the office, you can instantly share thermal images with customers or generate professional reports directly from your mobile device or computer.
Request Info
Identify and Troubleshoot
At Agile Microsys, the FLIR C3-X helps you swiftly detect hidden issues and minimize diagnostic time with its MSX® technology and 128 × 96 true thermal imaging. Whether you’re working on electrical, mechanical, or building maintenance tasks, this tool provides reliable results, ensuring no hidden problems go unnoticed.
Document and Share with Ease
With the FLIR C3-X from Agile Microsys, you can directly upload thermal images using FLIR Ignite™ cloud connectivity. Effortlessly create professional reports and instantly share them with customers via email, ensuring a seamless and efficient workflow from inspection to communication.
Rugged, Reliable, and Compact
The FLIR C3-X, available at Agile Microsys, is designed for durability in any work environment. Its pocket-portable design makes it easy to carry on every job. With an IP54 rating for water and dust resistance and a rugged build that can withstand a 2-meter drop, it’s the perfect companion for tough jobsite conditions.
| Feature | Specification |
|---|---|
| IR Resolution | 128 × 96 pixels |
| Thermal Sensitivity/NETD | <70 mK |
| Accuracy | 0 to 100°C (32 to 212°F): ±3°C (±5.5°F); 100 to 300°C (212 to 572°F): ±3% |
| Field of View (FOV) | 53.6° |
| Digital Camera | 5 MP resolution |
| Image Modes | Infrared image, Visual image, MSX, Picture-in-picture |
| Storage Media | Internal memory and FLIR Ignite cloud connectivity |
| Auto Orientation | Yes |
| Camera Software Update | Automatic over Wi-Fi or USB via computer |
| Color Palettes | Iron, Gray, Rainbow, Rainbow HC |
| Detector Pitch | 12 µm |
| Display Resolution | 640 × 480 pixels |
| Minimum Focus Distance | Thermal: 0.1 m, MSX: 0.3 m |
| Spatial Resolution (IFOV) | 7.9 mrad/pixel |
| Spectral Range | 8 to 14 µm |
| Video Lamp | Yes |
| Battery Capacity | 1800 mAh |
| Battery Operating Time | 4 hours |
| Charging System | USB-C (1 A) |
| Charging Time | 2 hours |
| Operating Temperature Range | -10 to 50°C (14 to 122°F) |
| Storage Temperature Range | -40 to 70°C (-40 to 158°F) |
| Humidity | 95% relative humidity 25 to 40°C non-condensing |
| Drop Test | 2 m (6.56 ft) |
| Shock | 25 g (IEC 60068-2-27) |
| Vibration | 2 g (IEC 60068-2-6) |
| Housing Material | PC and ABS, partially covered with TPE; aluminum |
| Size (L x W x H) | 138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in) |
| Weight | 0.52 kg (1.14 lb) |
| Warranty | FLIR Warranty |
