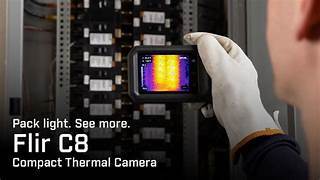

The FLIR C8 Thermal Camera is a compact thermal imaging device designed for fast and accurate inspections. The FLIR C8 Thermal Camera helps detect temperature issues quickly in electrical, HVAC, and industrial applications. Learn more about thermal imaging technology: FLIR.COM
Key Features of FLIR C8 Thermal Camera
-
✅ 320 × 240 Thermal Resolution – Clear and detailed thermal imaging
-
✅ MSX® Image Enhancement – Adds visible details to thermal images
-
✅ Compact & Portable Design – Easy to carry for on-site inspections
-
✅ FLIR Ignite™ Cloud Connectivity – Upload and manage data instantly
-
✅ Built-in Reporting Tools – Generate reports quickly
-
✅ Fast Inspection Workflow – Saves time and improves efficiency
Applications
-
Electrical inspections
-
HVAC diagnostics
-
Industrial maintenance
-
Facility management
-
Equipment monitoring
FASTER MORE RELIABLE INSPECTIONS
Identify issues quickly and with confidence thanks to a high resolution, high thermal sensitivity, and isotherm alarming that support consistent, repeatable results.
SEAMLESS CLOUD INTEGRATION
Images automatically upload to Flir Ignite for secure storage, easier access, and standardized reporting, reducing manual steps and data loss.
SIMPLIFIED REPORTING
Prebuilt inspection templates within Ignite Pro accelerate analysis and documentation, making it easy to share findings with teams or clients.
OVERVIEW
| IR Resolution | 320 × 240 pixels |
|---|---|
| Thermal Sensitivity_NETD | <50 mK |
| Accuracy | Accuracy at ambient temp. 10°C to 35°C (50°F to 95°F) and object temp. above 0°C (32°F): • 0°C to 100°C (32°F to 212°F): ±2°C (±5.5°F) • 100°C to 450°C (212°F to 842°F): ±2% |
| Field of view [FOV] | 35° × 27° |
| Digital Camera | 5 MP, Fixed focus, 71.5° × 56° (84° diagonal) field of view |
| Image Modes | • Infrared image • Visual image • MSX • Picture in picture (IR area on visual image) |
| Display | 3.5 in, auto orientation |
| Storage Media | Built-in |
CONNECTIONS & COMMUNICATIONS
| Bluetooth | Bluetooth v. 5.0 EDR • PAN |
|---|---|
| Image File Format | Standard JPEG, 14-bit measurement data included |
| Image Storage Capacity | >5000 sets of images |
| Storage Media | Built-in |
| USB | USB 2.0, Type-C connector |
| WiFi | 802.11 a/b/g/n (2.4 and 5 GHz) |
ENVIRONMENTAL
| Drop | Designed for 2 m (6.56 ft) |
|---|---|
| EMC | • EN 301 489-1 RED • EN 301 489-17 • FCC 47 CFR Part 15 B, Class B |
| Encapsulation | IP54 |
| Humidity [operating and storage] | IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C (77°F to 104°F) / 2 cycles |
| Operating Temperature Range | -10° to 50°C (14°F to 122°F) |
| Radio Spectrum | • ETSI EN 300 328 • EN 301 893 • FCC Title 47 CFR Part 15 • RSS-247 |
| Safety | EN 62368-1 |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Tripod Mounting | UNC ¼″-20 |
IMAGING & OPTICAL
| Automatic Image Adjustment | • Automatic level and span |
|---|---|
| Camera software update | • Automatic over Wi-Fi • USB via computer |
| Color palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Detector Pitch | 12 µm |
| Detector Type | Focal plane array, uncooled microbolometer |
| Digital Camera | 5 MP, Fixed focus, 71.5° × 56° (84° diagonal) field of view |
| Digital Zoom | Yes, zoom pinch, 1–4× continuous |
| Display resolution | 640 × 480 pixels |
| f number | 1.4 |
| Field of view [FOV] | 35° × 27° |
| Focus | Focus free |
| Gallery | Yes, incl. thumbnails and custom folder structure |
| Image Frequency | 9 Hz |
| Image Modes | • Infrared image • Visual image • MSX • Picture in picture (IR area on visual image) |
| IR Resolution | 320 × 240 pixels |
| Manual Image Adjustment | • Manual level and span • 1-Touch level and span |
| Minimum Focus Distance | 0.4 m (1.3 ft) |
| Spatial resolution [IFOV] | 2.0 mrad/pixel |
| Spectral Range | 7.5 to 13 µm |
| Thermal Sensitivity_NETD | <50 mK |
| Video Streaming | Yes; MSX, Thermal, Visual, Picture in Picture.
USB Video Class colorized uncompressed with overlay 9 Hz. |
MEASUREMENT & ANALYSIS
| Accuracy | Accuracy at ambient temp. 10°C to 35°C (50°F to 95°F) and object temp. above 0°C (32°F): • 0°C to 100°C (32°F to 212°F): ±2°C (±5.5°F) • 100°C to 450°C (212°F to 842°F): ±2% |
|---|---|
| Measurement Tools | • Spot • Box with max./min. • Isotherm |
| Measurements correction | • Emissivity; matt/semi-matt/semi-glossy + custom value • Reflected apparent temperature • Atmospheric compensation |
| Object Temperature Range | -20°C to 450°C (-4°F to 842°F) |
POWER
| Battery operating time | 3 hours |
|---|---|
| Battery Type | Rechargeable Li-Ion battery (built-in) |
| Battery voltage | 3.7 V |
| Charging system | USB-C (1 A) |
| Charging Time | 2 hours |
| External Power Operation | 5 V, USB-C |
| Power Management | Adjustable stand-by and automatic shut-down |
USER INTERFACE
| Display | 3.5 in, auto orientation |
|---|---|
| Text | Image annotations: Soft keyboard on touchscreen, auto-prompt for note when image is saved |
| Touchscreen | Yes, capacitive |
GENERAL
| Package Includes | • Flir C8 • Printed documentation • Flir Thermal Studio Starter • Wrist strap lanyard • USB cable • Pouch |
|---|---|
| Size [L x W x H] | 138 × 84 × 34 mm (5.4 × 3.3 × 0.94 in) |
| Weight | 0.19 kg (0.42 lb) |
